5 Inch TFT LCD Display 1080×1920 MIPI 1200nits High Brightness LCD Display For Cycling Computer Bike Display

5 Inch Cycling Computer Bike Display Overview

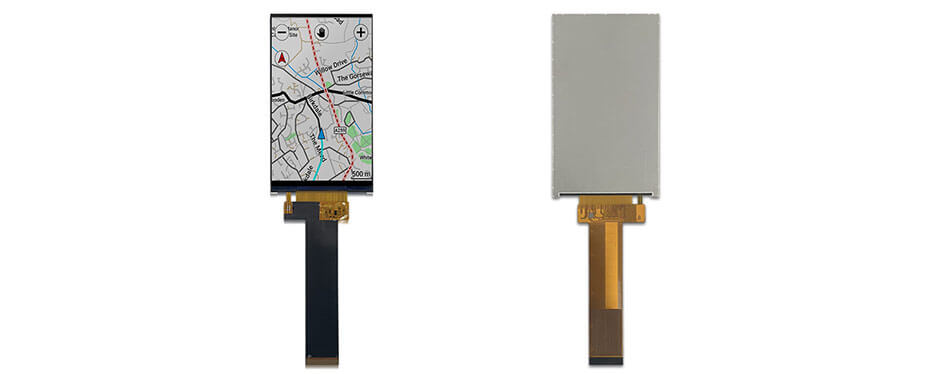

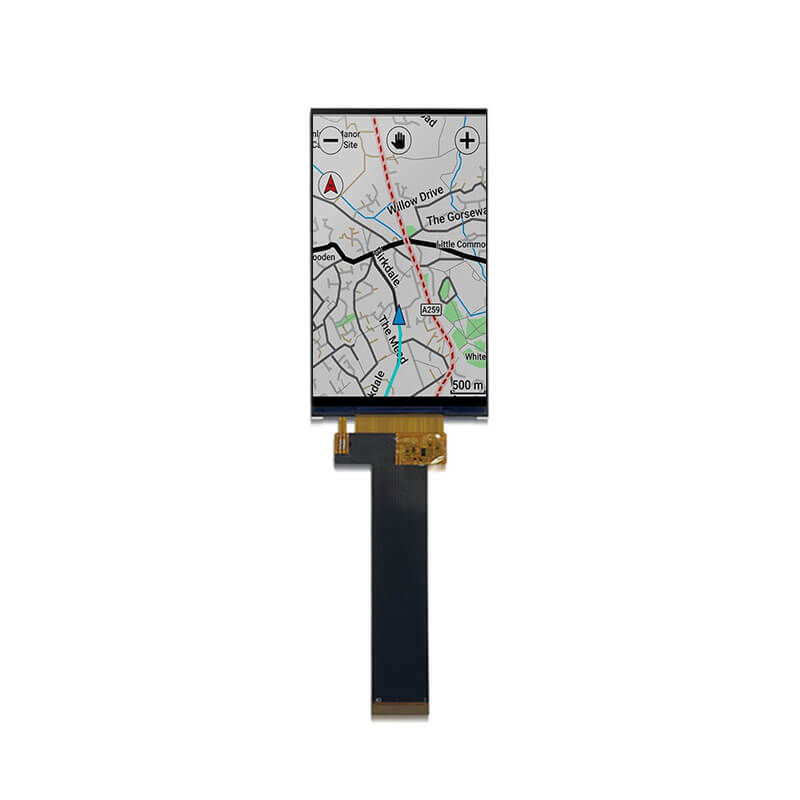

ET050FH10-T is a 5.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 1080×1920 with a 9:16 aspect ratio (W:H) and adopts a MIPI interface for stable high-speed transmission. The display offers an active area of 61.88 (W) × 110.02 (H) mm and an outline dimension of 64.76 (W) × 118.7 (H) mm. With a brightness of 1200 cd/m², it ensures excellent visibility under strong ambient light, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.

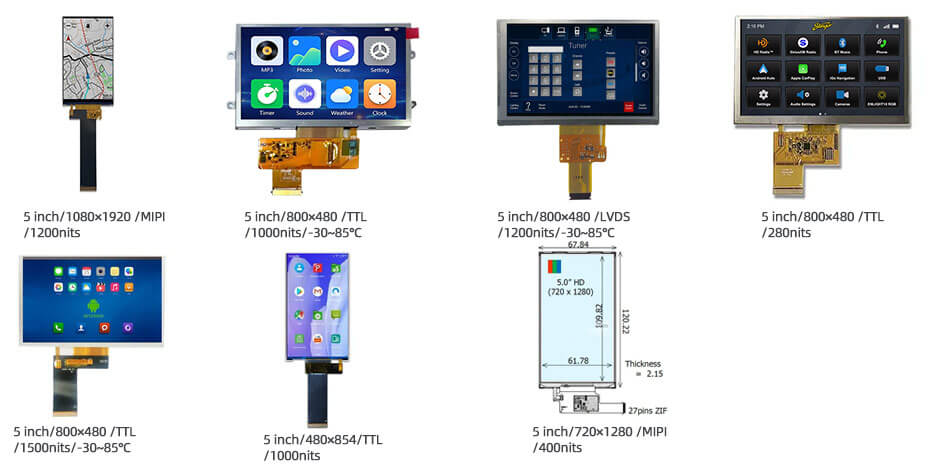

More 5 Inch Cycling Computer Bike Display For Reference
ET050FH10-T (1080×1920, MIPI, LCM, 1200nits,  -20~70°C, 64.76×118.7mm)
TM050RDZG03-00 (800×480, TTL, LCM, 1000nits,  -30~85°C, 120.7×77.8mm)
COM50H5N15ULC (800×480, LVDS, LCM, 1200nits,  -30~85°C, 124×80.82mm)
ET050WV10-K (800×480, TTL, LCM, 280nits,  -20~70°C, 120.7×75.9mm)
ET050WV06-T (800×480, TTL, LCM, 1500nits,  -30~85°C, 120.7×75.8mm)
ET050FW0-H (480×854, TTL, LCM, 1000nits,  -20~70°C, 66.4×120.05mm)
COM50H5N17ULC (720×1280, MIPI, LCM, 400nits,  -20~70°C, 67.84×120.22mm)

Cycling Computer Bike Display Solution

Youritech Production and Manufacturing
