4.2 Inch TFT LCD Display 272×480 Parallel RGB SPI High Brightness 740nits Wide Temperature IPS LCD Display For Automotive

4.2 Inch Automotive Display Overview

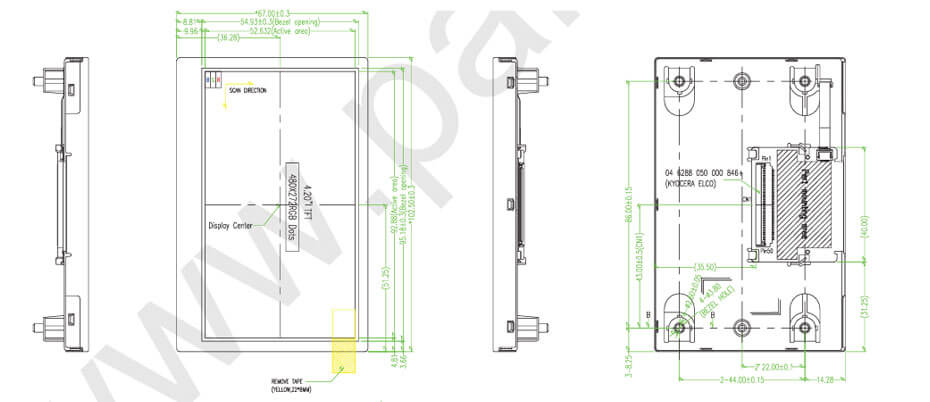

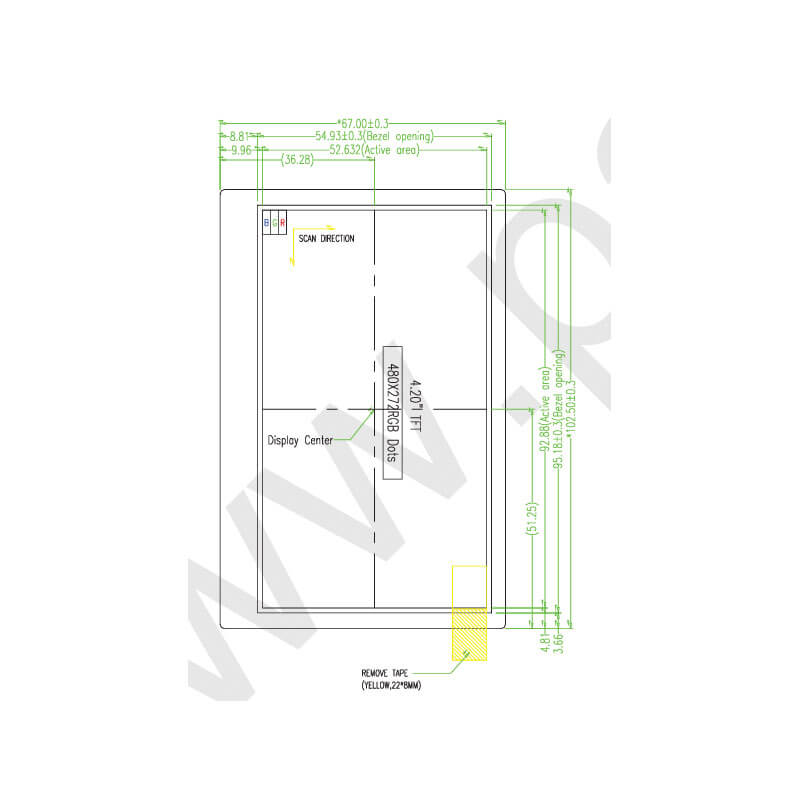

TFT480272-27-E is a 4.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. TFT480272-27-E supports display 272(RGB)×480 (WQVGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 52.632(W)×92.88(H) mm, outline size of 67(W)×102.5(H)×19.65(D) mm, viewing area size of 54.93(W)×95.18(H) mm. As a Normally Black, Transmissive LCM product, TFT480272-27-E can provides 740 cd/m² display brightness 850:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TFT480272-27-E utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
