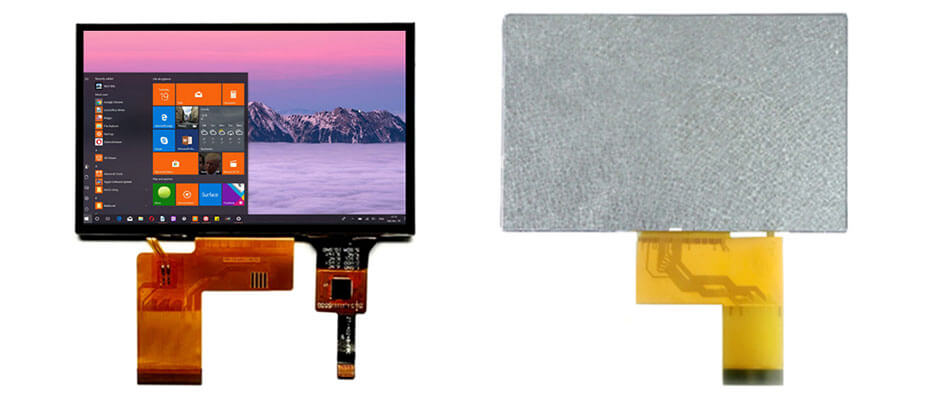

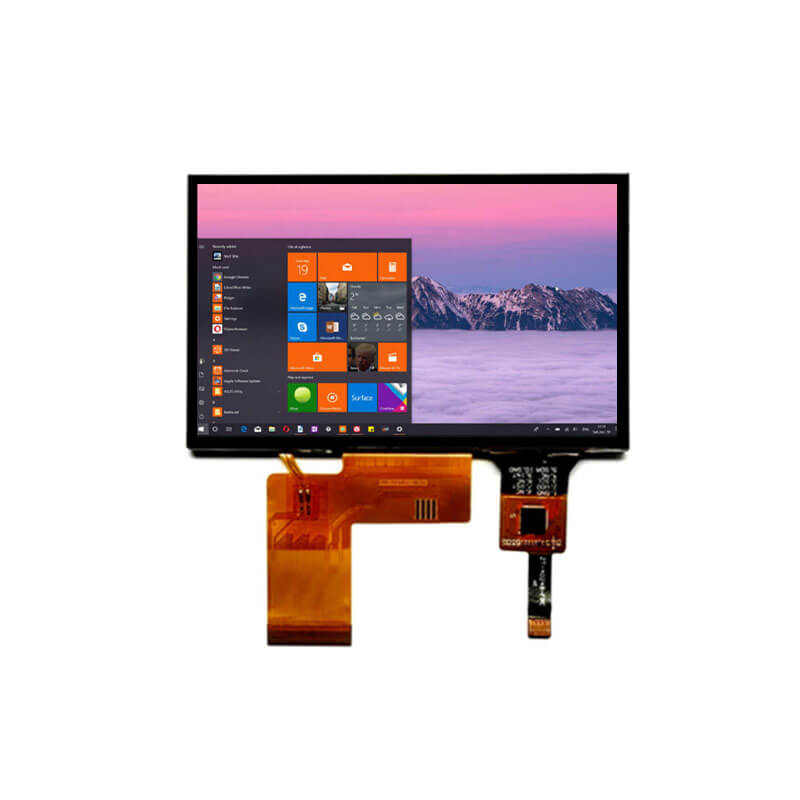

4.3 Inch TFT LCD Display 800×480 TTL High Brightness 1000nits Wide Temperature IPS LCD Display For Automotive

Part No.:ET043WV01-ZK
Size:4.3″ inch
Resolution:800x480
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:105.42x67.07mm
Active Area:95.04x53.86mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1000nits
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

4.3 Inch TFT LCD Display 800×480 TTL High Brightness 1000nits Wide Temperature IPS LCD Display For Automotive Video

4.3 Inch TFT LCD Display 800×480 TTL High Brightness 1000nits Wide Temperature IPS LCD Display For Automotive Overview

ET043WV01-ZK is a 4.3-inch diagonal TFT-LCD display product with a transmissive display mode. ET043WV01-ZK supports a resolution of 800×480 with a standard 15:9 aspect ratio, delivering clear and stable image performance, and utilizes a TTL interface for signal transmission. It features an active area of 95.04(W)×53.86(H) mm and an outline dimension of 105.42(W)×67.07(H) mm. The display provides a high brightness of 1000 cd/m², suitable for automotive and wide temperature applications, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET043WV01-ZK operates within an extended temperature range of -30 to 85°C and can be stored within the same -30 to 85°C range. This model does not include a touch function.

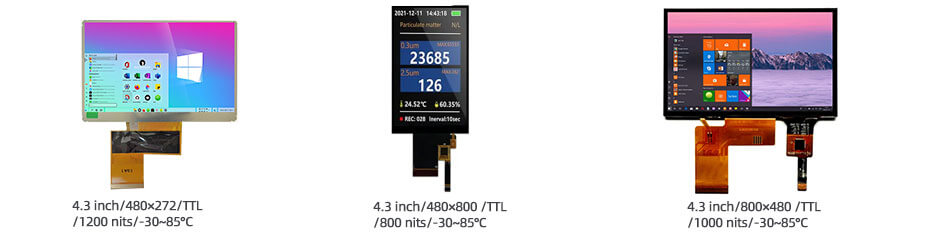

More 4.3 Inch Automotive Display For Reference
COM43H4N44ULC (480×272, TTL, IPS, 1200nits, -30~85°C, 105.5×67.2mm)
ET043WV10-TT (480×800, TTL, IPS, 800nits, -30~85°C, 62×104.25mm)
ET043WV01-ZK (800×480, TTL, IPS, 1000nits, -30~85°C, 105.42×67.07mm)
