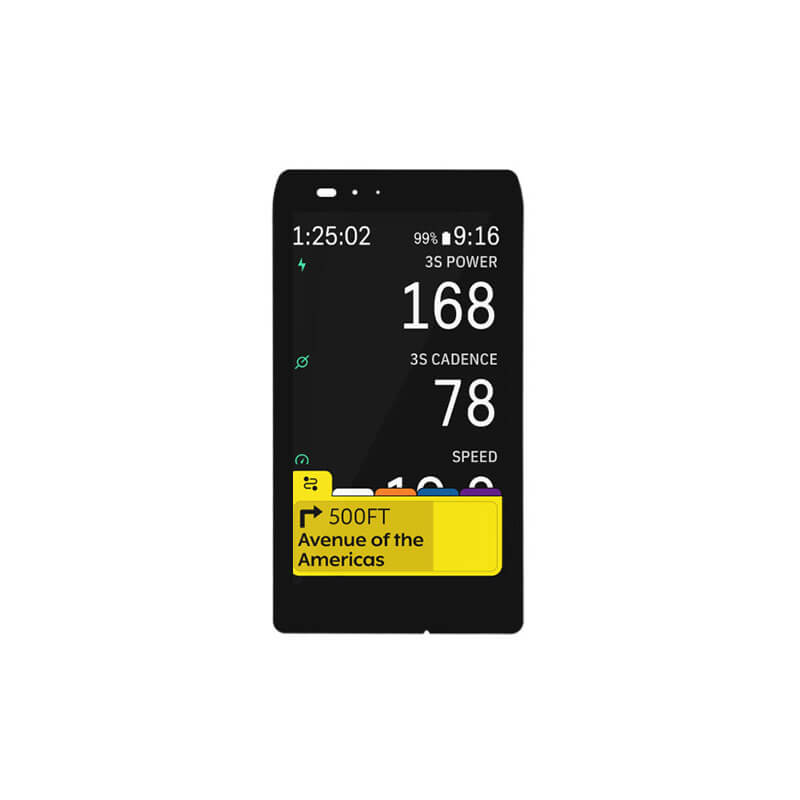

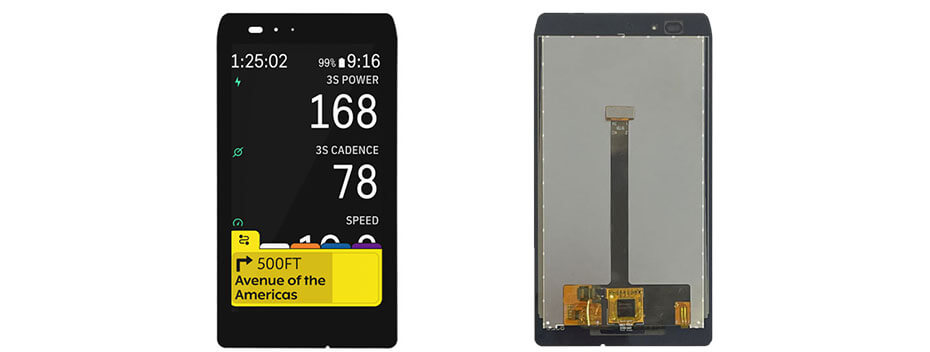

4.1 Inch TFT LCD Display 720×1280 MIPI High Brightness 500nits Wide Temperature IPS LCD Display With Capacitive Touch For Automotive

Part No.:ET041HD01-TT
Size:4.1″ inch
Resolution:720x1280
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:61x113.85mm
Active Area:51.19x91.01mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:yes

4.1 Inch TFT LCD Display 720×1280 MIPI High Brightness 500nits Wide Temperature IPS LCD Display With Capacitive Touch For Automotive Video

4.1 Inch TFT LCD Display 720×1280 MIPI High Brightness 500nits Wide Temperature IPS LCD Display With Capacitive Touch For Automotive Overview

ET041HD01-TT is a 4.1-inch diagonal TFT-LCD display product with a transmissive display mode and integrated capacitive touch functionality. ET041HD01-TT supports a resolution of 720×1280 with an aspect ratio of 9:16 (W:H), delivering a sharp portrait-oriented display performance, and utilizes a MIPI interface for signal transmission. It features an active area of 51.19(W)×91.01(H) mm and an outline dimension of 61(W)×113.85(H) mm. The display provides a typical brightness of 500 cd/m², suitable for automotive and wide temperature environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET041HD01-TT operates within an extended temperature range of -30 to 85°C and can be stored within the same -30 to 85°C range. This model includes touch functionality.
