3.4 Inch TFT LCD Display 480×640 MIPI RGB Transflective LCD Display For Cycling Computer Bike Display

3.4 Inch Cycling Computer Bike Display Overview

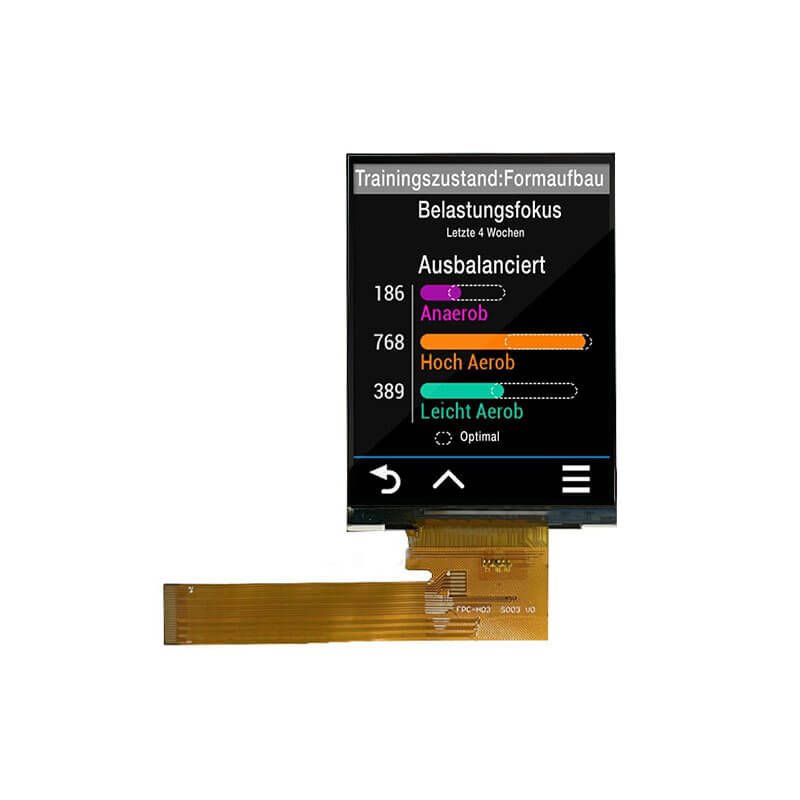

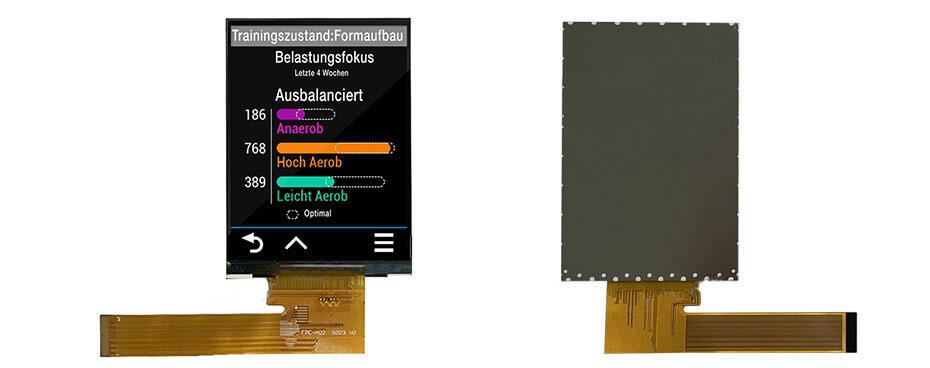

ET034VG01-H is a 3.4-inch diagonal TFT-LCD display module featuring a transflective display mode. It supports a resolution of 480×640 with a 3:4 aspect ratio (W:H) and adopts MIPI/RGB interfaces for flexible integration. The display offers an active area of 51.84 (W) × 69.12 (H) mm and an outline dimension of 55.44 (W) × 78.89 (H) mm. With a brightness of 200 cd/m², it ensures readable performance under both ambient and low-light conditions, making it suitable for cycling computer and bike display applications. It features IPS full viewing angle performance and operates within a temperature range of -20°C to 60°C (storage: -20°C to 70°C). This module does not include a touch panel.

More 3.4 Inch Cycling Computer Bike Display For Reference

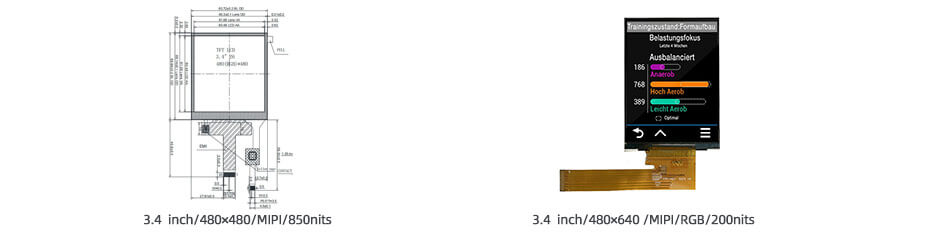

ET034WV02-KT (480×480, MIPI, LCM,  850nits, -20~70°C, 69.64×65.72mm)
ET034VG01-H (480×640, MIPI/RGB , LCM,  200nits, -20~60°C, 55.44×78.89mm)

Cycling Computer Bike Display Solution

Youritech Production and Manufacturing
