3.5 Inch TFT LCD Display 320×240 TTL 1400nits High Brightness LCD Display For Cycling Computer Bike Display

3.5 Inch Cycling Computer Bike Display Overview

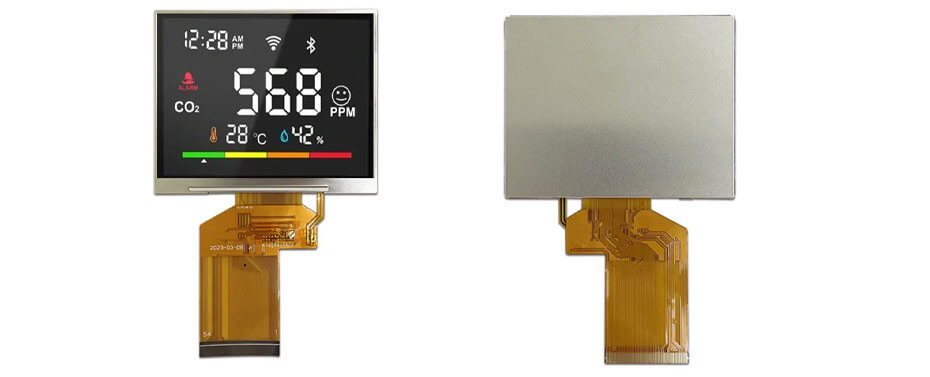

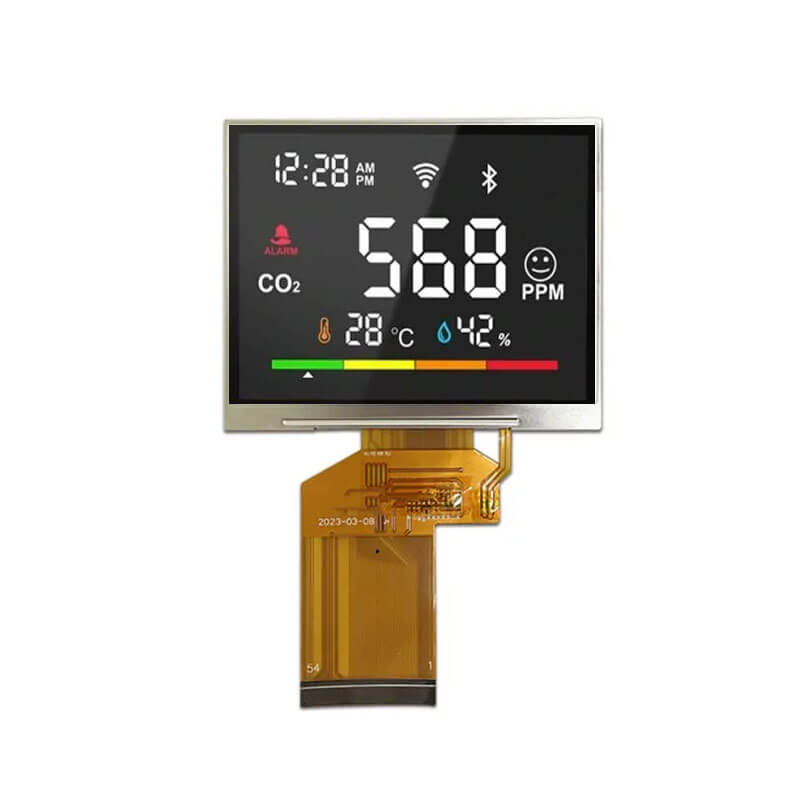

ET035HV08-T is a 3.5-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 320×240 with an aspect ratio of 4:3 (W:H) and adopts a TTL interface for stable signal transmission. The display offers an active area of 70.08 (W) × 52.56 (H) mm and an outline dimension of 76.84 (W) × 63.84 (H) mm. It provides a high brightness of 1400 cd/m², ensuring excellent visibility even under strong ambient light, making it suitable for cycling computer and bike display applications. It features wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.

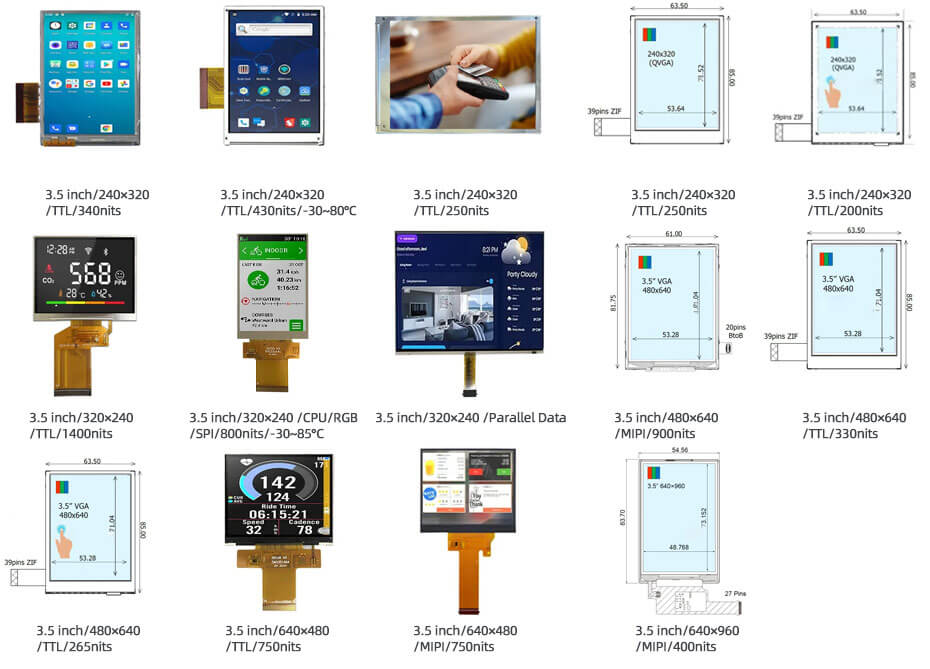

More 3.5 Inch Cycling Computer Bike Display For Reference
TX09D40VM3CAA (240×320, TTL, LCM, 340nits,  -20~70°C, 64×86mm)
TX09D40VM3CBA (240×320, TTL, LCM, 430nits,  -30~80°C, 64×86mm)
TX09D30VM1CCA (240×320, TTL, LCM, 250nits,  -30~80°C, 64×86mm)
COM35H3R08ULC (240×320, TTL, LCM, 250nits,  -20~70°C, 63.5×85mm)
COM35H3R10UTC (240×320, TTL, LCM, 200nits,  -20~70°C, 63.5×85mm)
ET035HV08-T (320×240, TTL, LCM, 1400nits,  -20~70°C, 76.84×63.84mm)
ET035HV20-K (320×480, CPU/RGB/SPI, LCM, 800nits,  -30~85°C, 55.5×84.96mm)
LS035Q7DD01 (320×240, Parallel Data , LCM,  -20~70°C, 74.84×59.92mm)
COM35H3P70ULC (480×640, MIPI, LCM, 900nits,  -20~70°C, 61×81.75mm)
COM35H3R12ULC (480×640, TTL, LCM, 330nits,  -20~70°C, 63.5×85mm)
COM35H3R14UTC (480×640, TTL, LCM, 265nits,  -20~70°C, 63.5×85mm)
ET035VG20-K (640×480, TTL, LCM, 750nits,  -20~70°C, 74.38×62.35mm)
ET035VG01-H (640×480, MIPI, LCM, 750nits,  -20~70°C, 94.08×74.8mm)
COM35H3R07ULC (640×960, MIPI, LCM, 400nits,  -20~70°C, 54.56×83.7mm)
