0.48"-5" LCD Display (3.3")

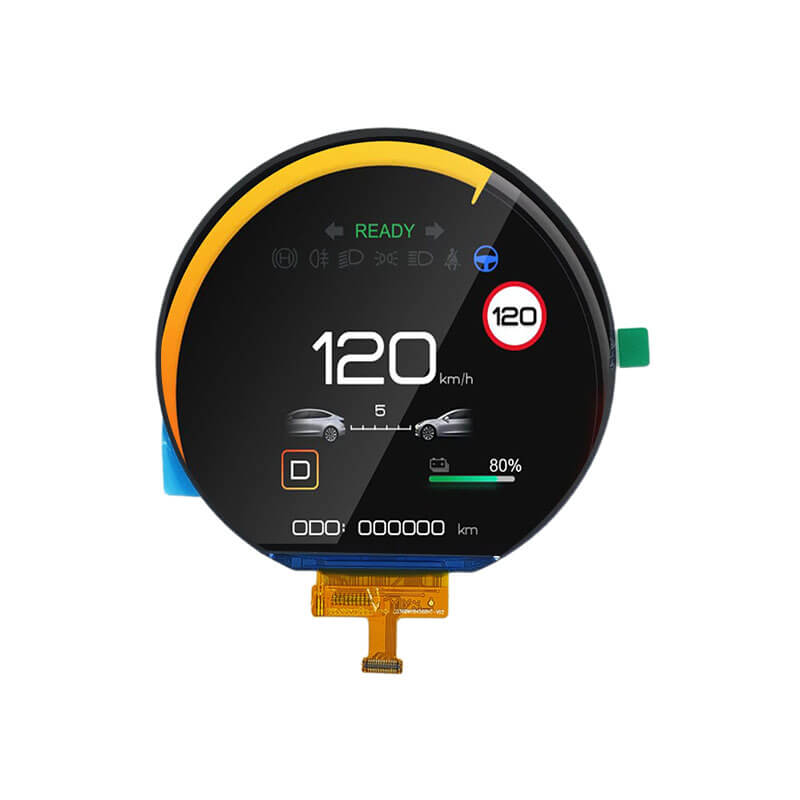

3.3 Inch Circular Display 320x320 MIPI IPS Round LCD Display For Wearable

Part No.:ET034CR01-P
Size:3.3″ inch
Resolution:320x320
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:66.2x69.3mm
Active Area:60x60mm
Viewing Angle L/R/U/D:70/70/60/70
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.3 Inch Circular Display Overview
ET034CR01-P is a 3.3-inch circular IPS LCD display designed for wearable applications. It features a 320 × 320 resolution with a transmissive display mode and MIPI interface. The display has an active area of 60 × 60 mm, an outline size of 66.2 × 69.3 mm, and viewing angles of 70° left/right, 60° up, 70° down. It delivers a typical brightness of 350 cd/m², operates between –20 to 70 °C, can be stored from –30 to 80 °C, and does not include touch functionality.
