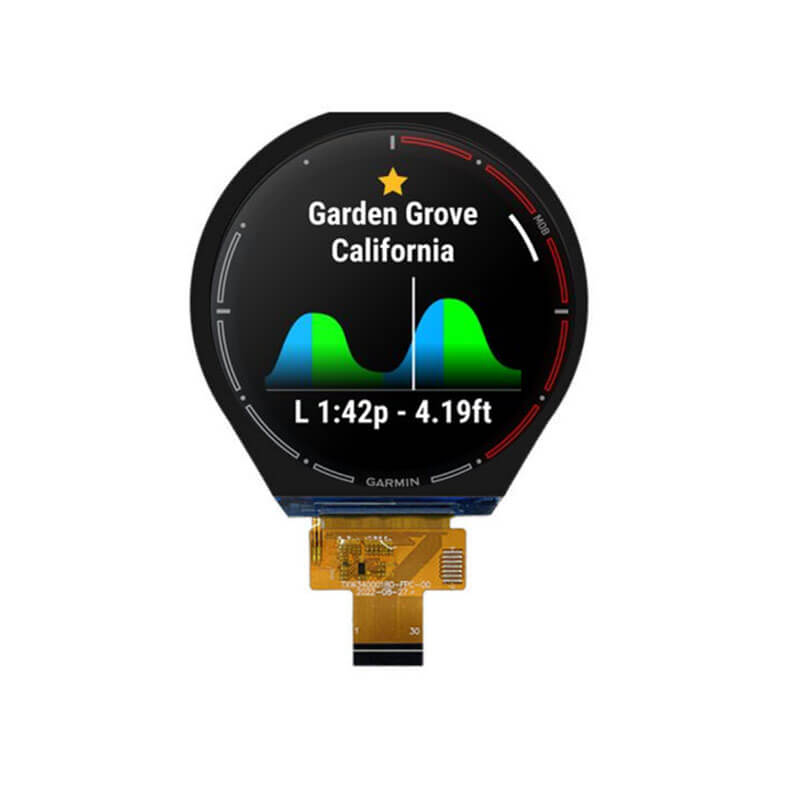

3.4 Inch Circular Display 800x800 MIPI IPS Round LCD Display For Wearable

Part No.:ET034FD01-T
Size:3.4″ inch
Resolution:800x800
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:94.9x96.95mm
Active Area:87.6x87.6mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.4 Inch Circular Display Overview
ET034FD01-T is a 3.4-inch circular IPS LCD display designed for wearable devices. It features a 800 × 800 resolution with a transmissive display mode and a MIPI interface. The display offers an active area of 87.6 × 87.6 mm, an outline size of 94.9 × 96.95 mm, and a wide viewing angle of 85° left/right/up/down. It provides a typical brightness of 500 cd/m², operates within –20 to 70 °C, can be stored between –30 to 80 °C, and does not include touch functionality.

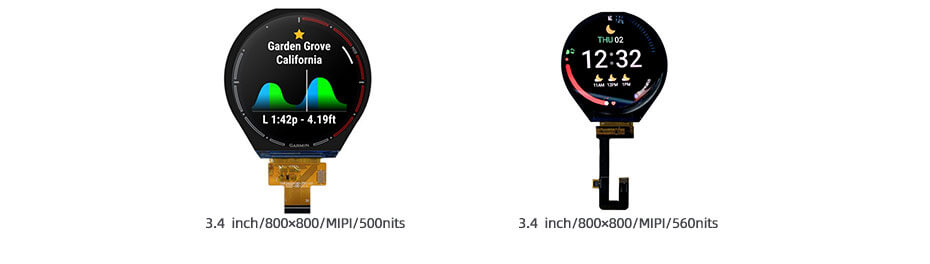

More 3.4 Inch Circular LCD Display For Reference
ET034FD01-T (800x800, MIPI, 500nits, -20~70°C, 94.9x96.95mm)
ET034CR01-ZT (800x800, MIPI, 560nits, -20~70°C, 112x112mm,CTP)
