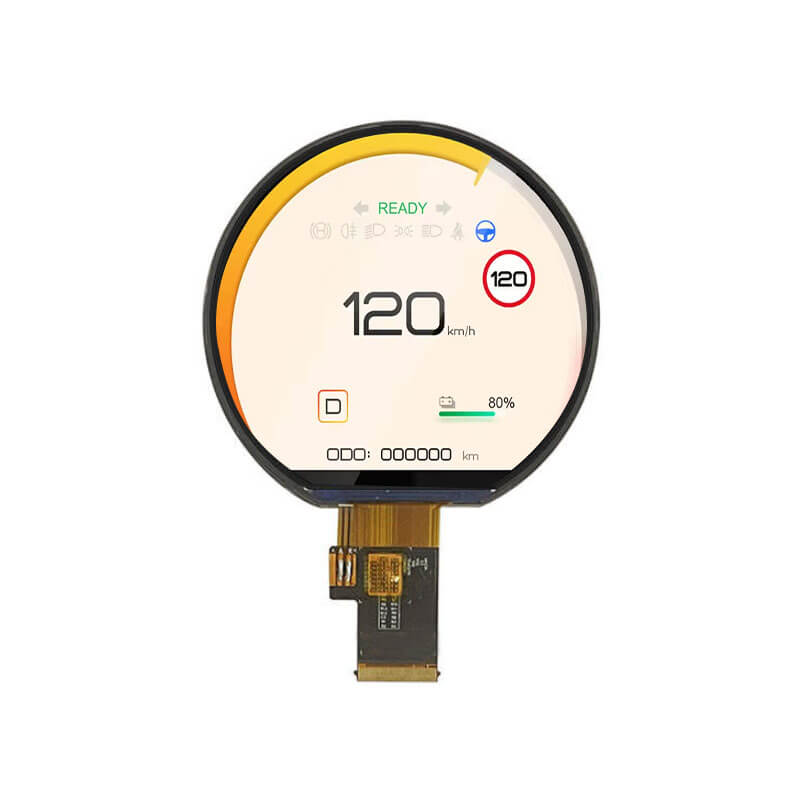

3.53 Inch Circular Display 544x506 TTL 1000nits High Brightness IPS Round LCD Display For Wearable

Part No.:ET036CR01-T
Size:3.53″ inch
Resolution:544x506
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:98.88x94.12mm
Active Area:89.76x83.49mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1000(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

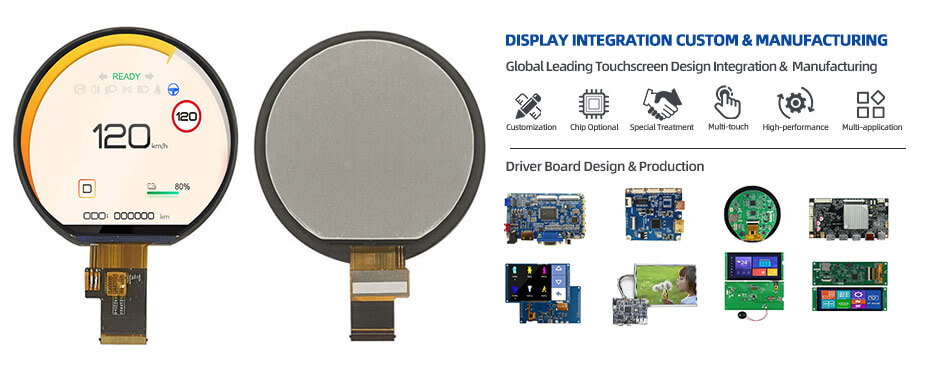

3.53 Inch Circular Display Overview
ET036CR01-T is a 3.53-inch circular IPS LCD display designed for wearable applications. It features a 544 × 506 resolution with a transmissive display mode and TTL interface. The display has an active area of 89.76 × 83.49 mm, an outline size of 98.88 × 94.12 mm, and 85° viewing angles in all directions. It delivers a high brightness of 1000 cd/m² (typ.), operates between –20 to 70 °C, can be stored from –30 to 80 °C, and does not include touch functionality.

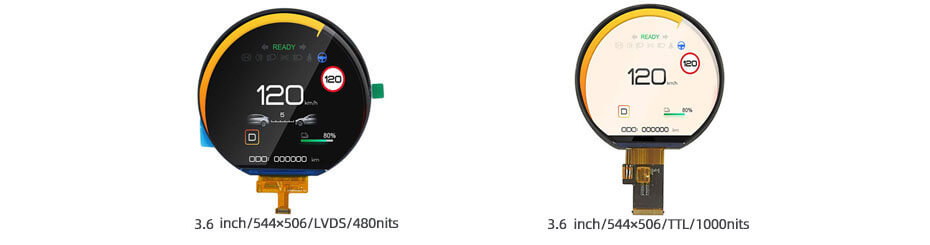

More 3.6 Inch Circular LCD Display For Reference
ET036CR01-A (544x506, LVDS, 480nits, -20~70°C, 95.46x91.81mm)
ET036CR01-T (544x506, TTL, 1000nits, -30~85°C, 98.88x94.12mm)
