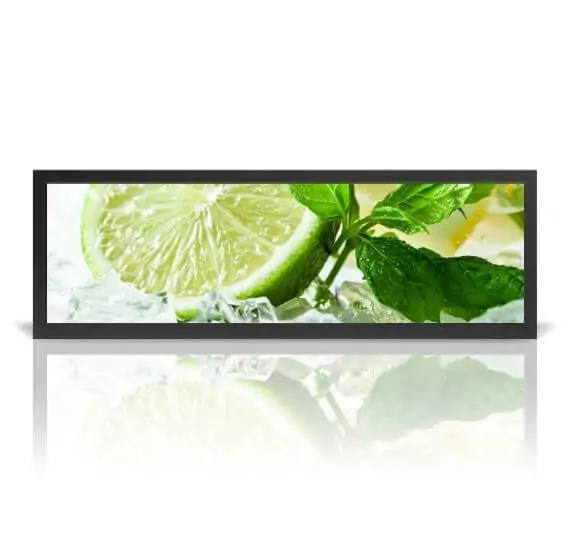

28inch bar screen 700 nits with 1920*360 resolution stretched display

  • Part No.:ET280FBM-NB1
  • Size:28″ inch
  • Resolution:1920x360
  • Panel Interface:LVDS
  • Display mode:ADS
  • Outline Dimension:704x136
  • Active Area:699.84x131.22
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness（cd/m2）:700cd/m²
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no
Get a quote

ET280FBM-NB1



Panel Size 28.0 inch   (1/3 cut of 31.5") Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×360 Pixel Format RGB Vertical Stripe
Display Area 699.84(W)×131.22(H) mm Luminance 700 cd/m² (Typ.)
Bezel Area 704(W)×136(H) mm Outline 732(W)×165(H) ×21(D) mm
Treatment / Operating Mode ADS, Normally Black, Transmissive
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Contrast Ratio 1200:1 (Typ.) (TM)
Good View at Symmetry Response 8 (Typ.)(G to G)
Interface Type LVDS (1 ch, 8-bit) , 51 pins , Connector Light Source WLED , 30K hours , Without Driver
Support Color 16.7M   72% (CIE1931) Touchscreen Without
Weight 2.40Kgs (Typ.)
Power Supply 12.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
