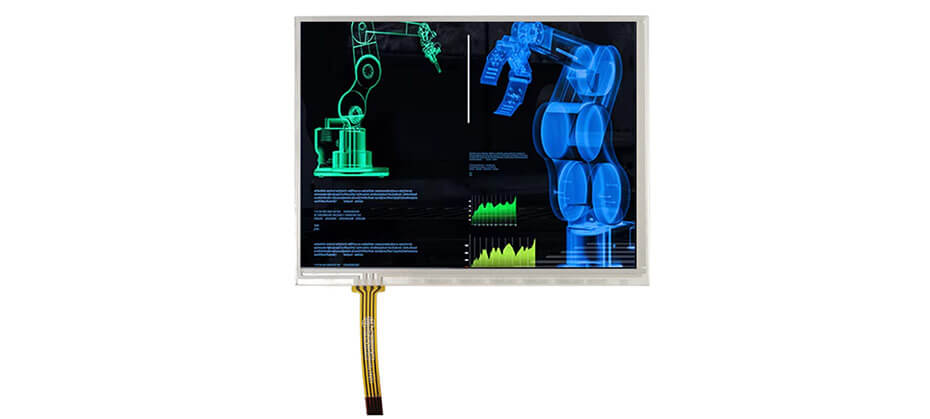

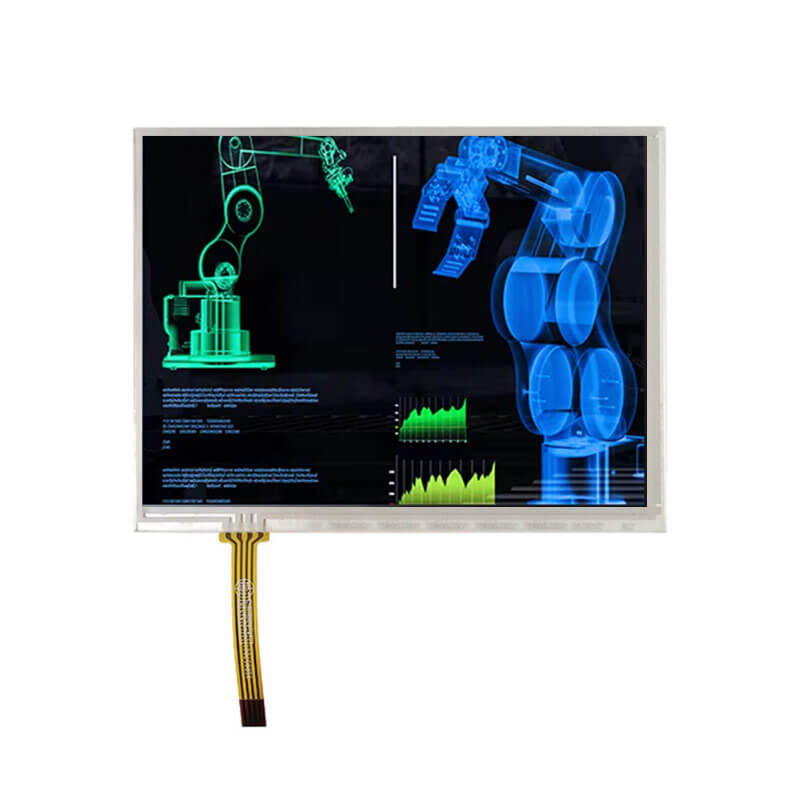

COM57H5N33XRC 5.7 Inch Transflective Display 640x480 Parallel RGB Sunlight Readable LCD Display With 4-wire Resistive Touch

5.7 Inch Transflective LCD Display Overview
COM57H5N33XRC is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch. COM57H5N33XRC supports display 640×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm. As a TN, Normally White, Transflective LCM product, COM57H5N33XRC can provides 350 cd/m² display brightness 600:1 transimissive contrast ratio, 4.7:1 (Typ.) reflective contrast ratio, 80/80/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 39% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM57H5N33XRC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

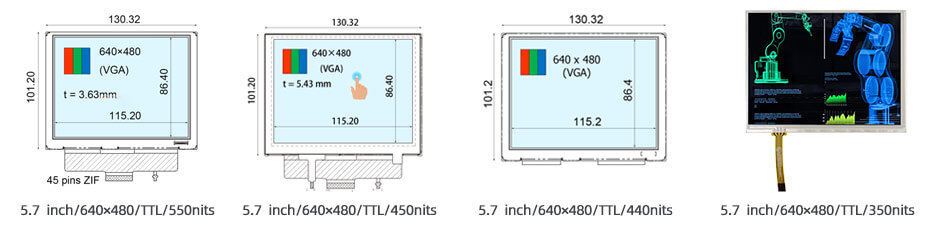

More 5.7 Inch Transflective LCD Display For Reference
COM57H5N27XLC (640x480, TTL, 550nits, -20~70°C, 130.32x101.2mm)
COM57H5N28XTC (640x480, TTL, 450nits, -20~70°C, 130.32x101.2mm, 4w-RTP)
COM57H5N32XSC (640x480, TTL, 440nits, -20~70°C, 130.32x101.2mm)
COM57H5N33XRC (640x480, TTL, 350nits, -20~70°C, 4w-RTP)
