3.2 Inch Transflective Display 240x320 CPU/RGB/SPI Sunlight Readable LCD Display For Handheld PDA

Part No.:ET32005A-01
Size:3.2″ inch
Resolution:240x320
Panel Interface:CPU/RGB/SPI
Display mode:Transflective

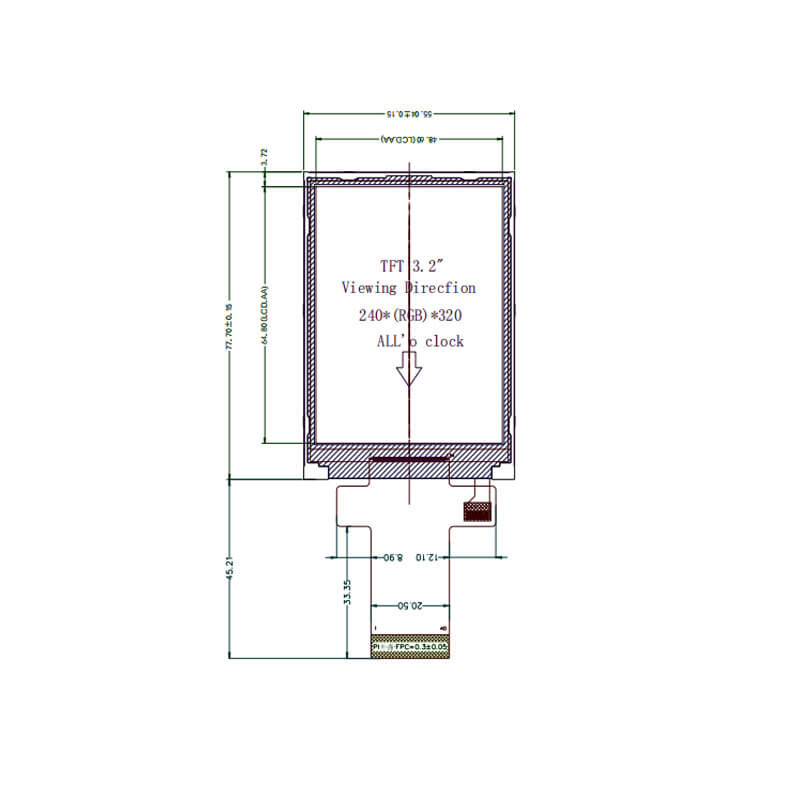

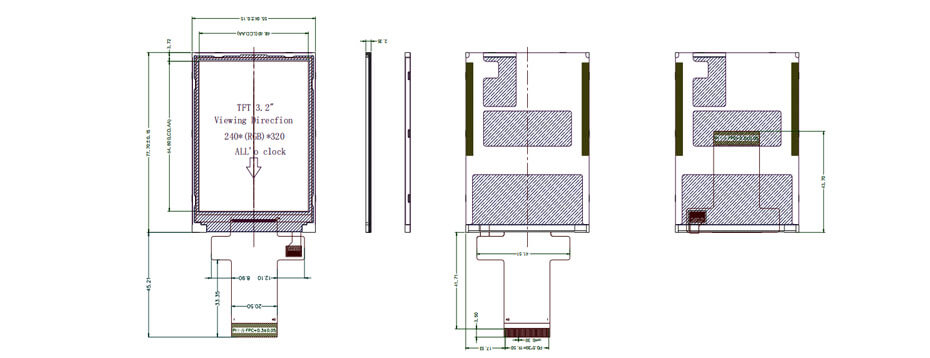

Outline Dimension:55.04x77.7mm
Active Area:48.6x64.8mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:280(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.2 Inch Transflective LCD Display Overview
3.2 Inch Transflective Display 240x320 CPU/RGB/SPI Sunlight Readable LCD Display For Handheld PDA.

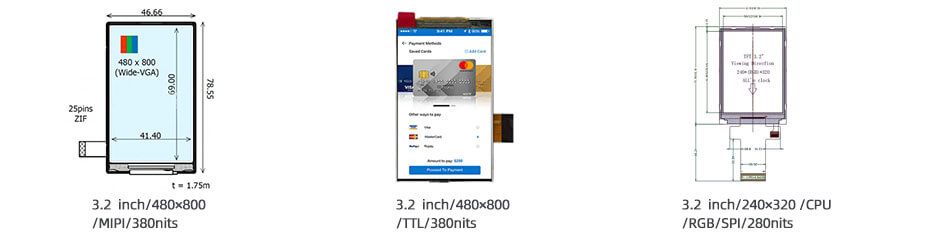

More 3.2 Inch Transflective LCD Display For Reference
COM32H3P68ULC (480x800, MIPI, 380nits, -20~70°C, 46.66x78.55mm)
COM32H3P71ULC (480x800, TTL, 380nits, -20~70°C, 46.66x78.55mm)
ET32005A-01 (240x320, CPU/RGB/SPI, 280nits, -20~70°C, 55.04x77.7mm)
