LCD above 17.3" (26")

26 Inch 4K LCD Display 3840x1440 eDP IPS Stretched Bar LCD Display With Capacitive Touch

Part No.:ET260BA01-KN
Size:26″ inch
Resolution:3840x1440
Panel Interface:eDP
Display mode:Transmissive
Outline Dimension:643.928x252.78mm
Active Area:620.928x228.28mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-20~70°C / -20~70°C
Touch:no

26 Inch 4k Display Overview

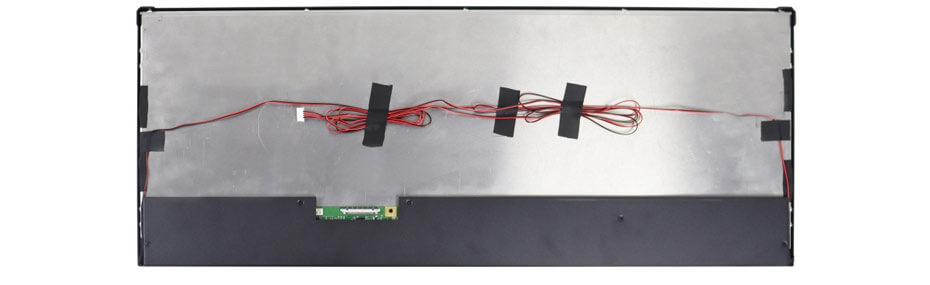

ET260BA01-KN is a 26-inch diagonal IPS LCD display module designed in a stretched bar format and operating in transmissive display mode. It supports a resolution of 3840 × 1440, delivering clear and wide-format visual performance. The panel adopts an eDP interface for signal transmission and provides a typical brightness of 300 cd/m². It features wide viewing angles of 85° in all directions (L/R/U/D), ensuring consistent image quality from different perspectives. The display has an active area of 620.928 (W) × 228.28 (H) mm and an outline dimension of 643.928 × 252.78 mm. ET260BA01-KN supports a wide operating and storage temperature range of −20 to 70°C and does not include touch functionality.
