26.2 Inch 4K LCD Display 4320x720 High Brightness 850nits eDP (4 Lanes) Wide Temperature IPS LCD Display With In-Cell Touch

26.2 Inch 4k Display Overview

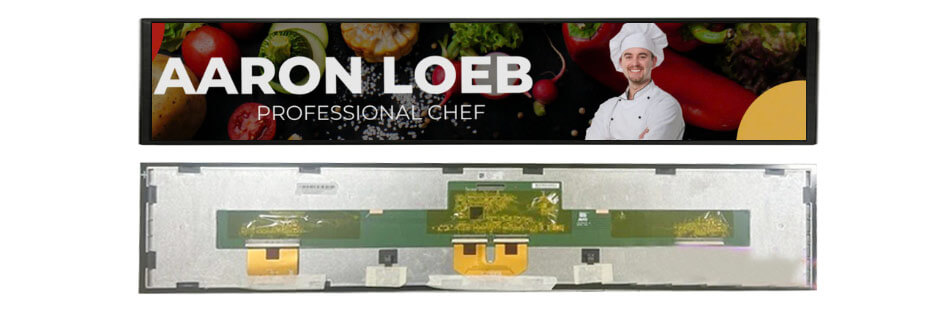

C262RAX01.0 is a 26.2 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, touchscreen In-Cell Touch. C262RAX01.0 supports display 4320(RGB)×720 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 657.072(W)×109.512(H) mm, outline size of 739.39(W)×182.84(H) mm, with surface treament of Hard coating. As a AHVA, Normally Black, Transmissive LCM product, C262RAX01.0 can provides 850 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 87% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. C262RAX01.0 utilizes eDP (4 Lanes) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 55Hz.
