8.1 Inch Stretched LCD Display 600×1600 MIPI Bar Display with Touch & HDMI Driver Board

8.1 Inch Stretched Bar Display Overview

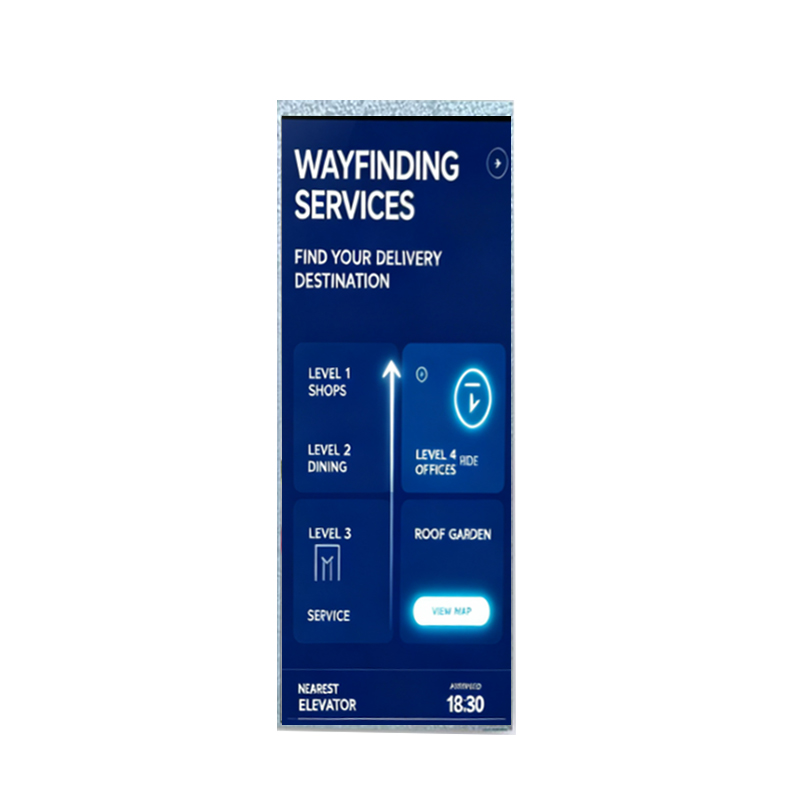

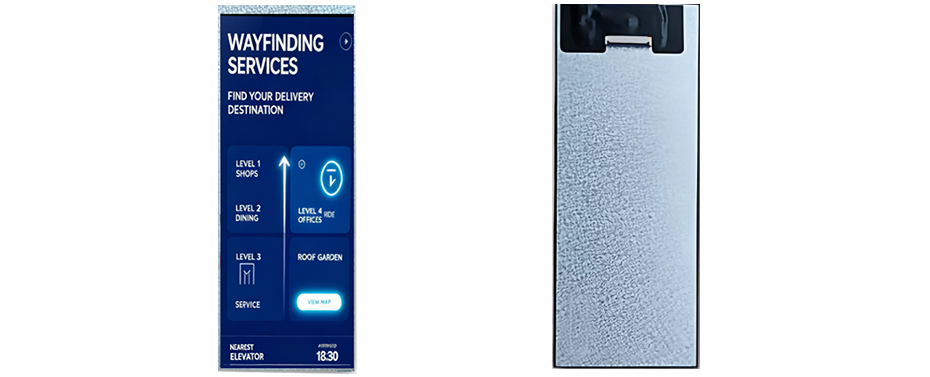

AV081SKM-N80-5HP0 is an 8.1 inch diagonal stretched LCD display screen product. It supports a resolution of 600×1600 with a portrait aspect ratio, and features a MIPI panel interface. It adopts a Normally Black display mode and offers an all-direction viewing angle of L/R/U/D. The display features an outline dimension of 78.43(W)×202.67(H)×4.6(D) mm and provides a display brightness of 500 cd/m². AV081SKM-N80-5HP0 supports touch functionality and is designed for reliable operation in temperatures ranging from -20°C to 70°C. The display can also be paired with an HDMI driver board for convenient integration into various embedded and industrial applications.

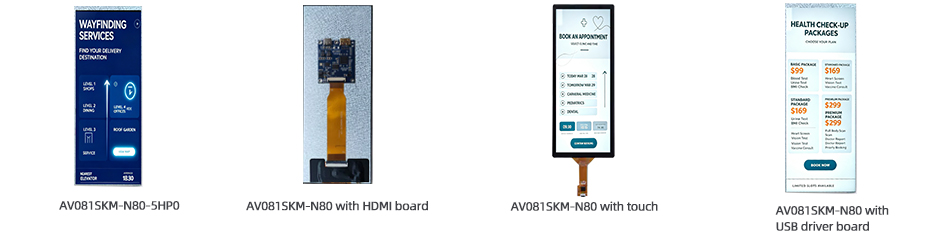

8.1 Inch Bar Displays Solution For Reference
AV081SKM-N80-5HP0
AV081SKM-N80 with HDMI board
AV081SKM-N80 with touch
AV081SKM-N80 with USB driver board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
