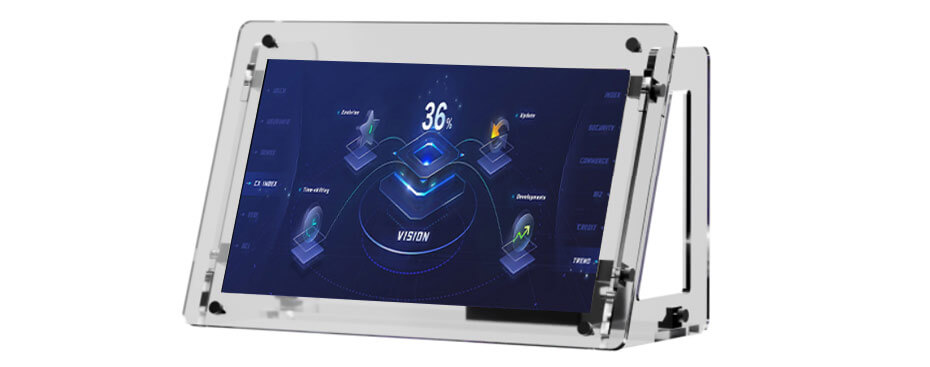

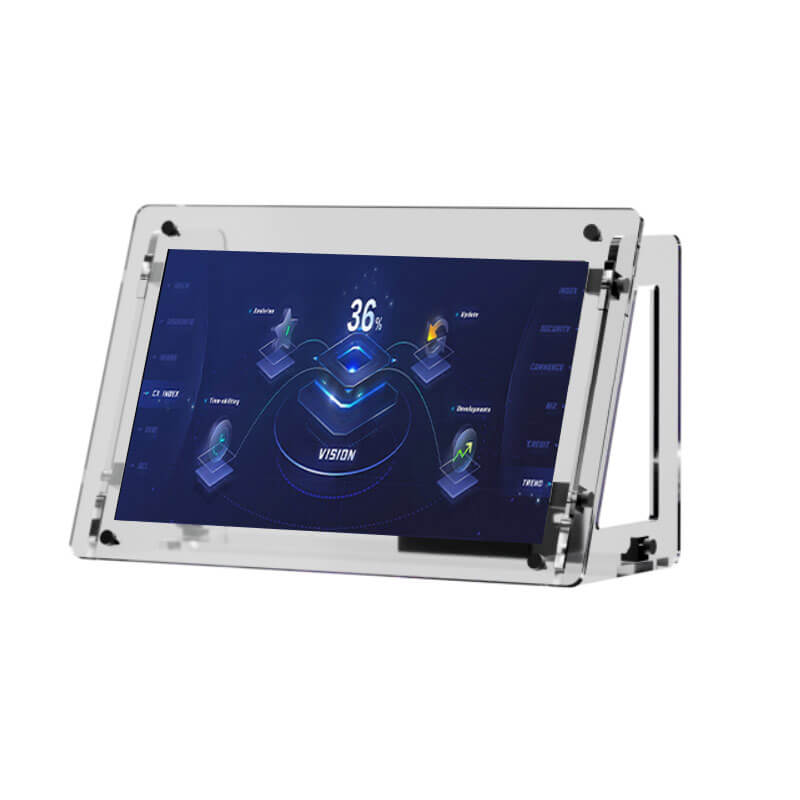

21.6 Inch AMOLED Display Overview
ET216AM01-LT is a 21.6 inch diagonal AMOLED display panel featuring self-emissive technology. It supports a resolution of 3840×2160 (UHD) with a 16:9 aspect ratio (W:H) and provides wide viewing angles of 85/85/85/85 (L/R/U/D). The module has an active area of 478.08(W) × 268.92(H) mm and an outline dimension of 488.08(W) × 278.92(H) mm, adopts an eDP interface, and offers a typical brightness of 400 cd/m². It operates in temperatures from -20°C to 70°C (storage: -30°C to 70°C) and is designed without a touch function.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
