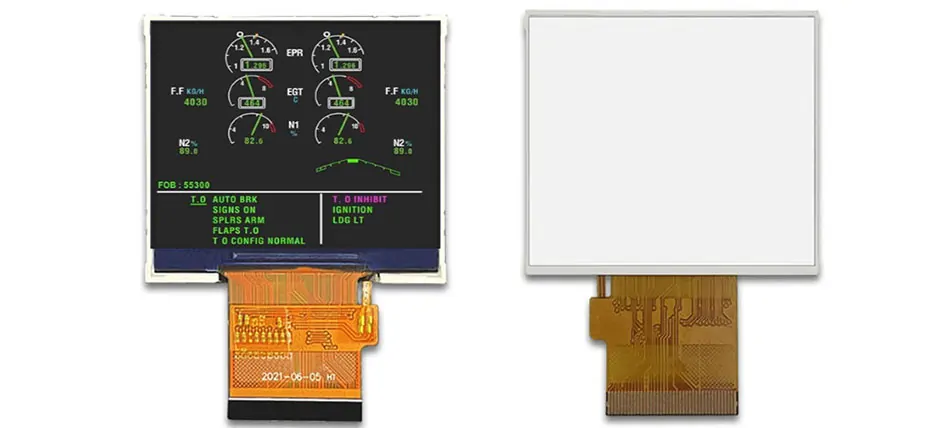

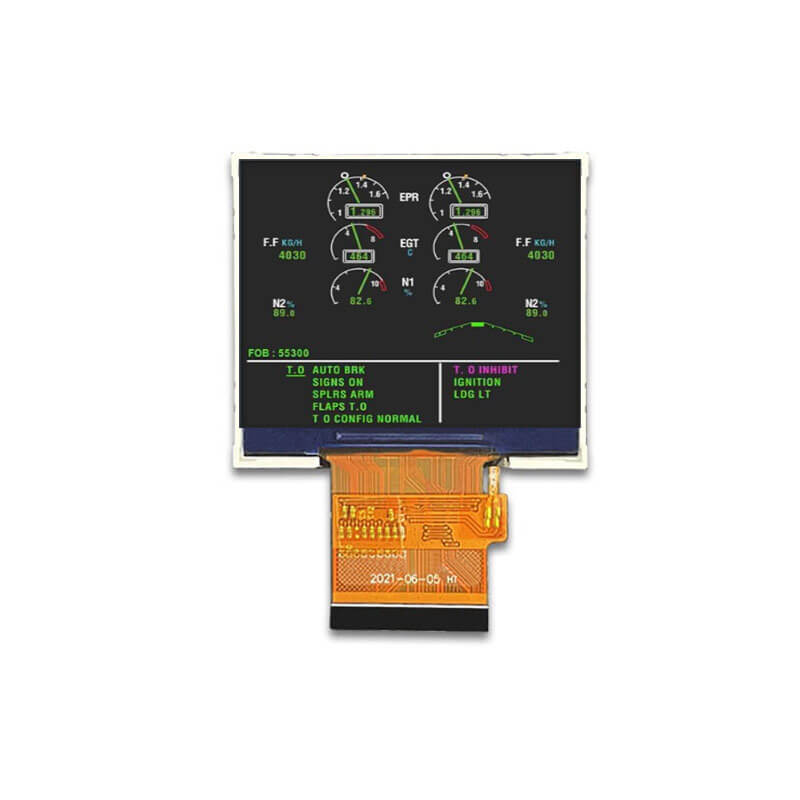

2 Inch TFT LCD Display 320×240 CPU RGB 600nits High Brightness IPS LCD Display For Automotive

Part No.:ET020HV02-T
Size:2″ inch
Resolution:320x240
Panel Interface:CPU/RGB
Display mode:Transmissive
Outline Dimension:46x41mm
Active Area:40.8x30.6mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:600(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2 Inch Automotive Display Overview
ET020HV02-T is a 2.0-inch diagonal TFT-LCD display featuring a transmissive mode and a resolution of 320×240 with a 4:3 aspect ratio. It adopts a CPU/RGB interface and IPS technology, offering wide viewing angles of 80/80/80/80 (L/R/U/D). The module has an active area of 40.8(W) × 30.6(H) mm and an outline size of 46(W) × 41(H) mm. With a typical brightness of 600 cd/m², it ensures good visibility for automotive applications. It operates within -20°C to 70°C and supports storage from -30°C to 80°C. This display does not include a touch panel.

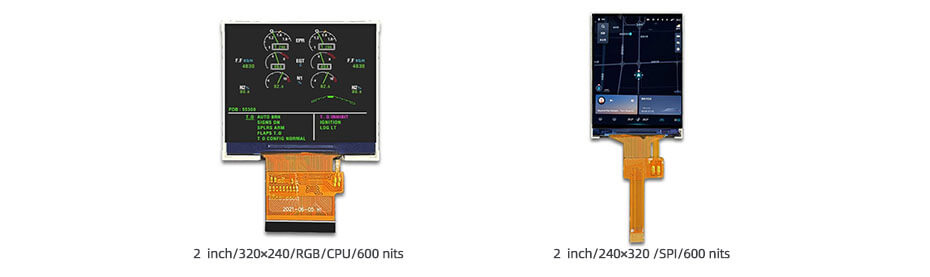

More 2 Inch Automotive Display For Reference
ET020HV02-T (320×240, CPU/RGB, IPS,600nits, -20~70°C, 46×41mm)
ET020HV03-T (240×320, SPI, IPS, 600nits, -20~70°C, 34.6×47.83mm)
