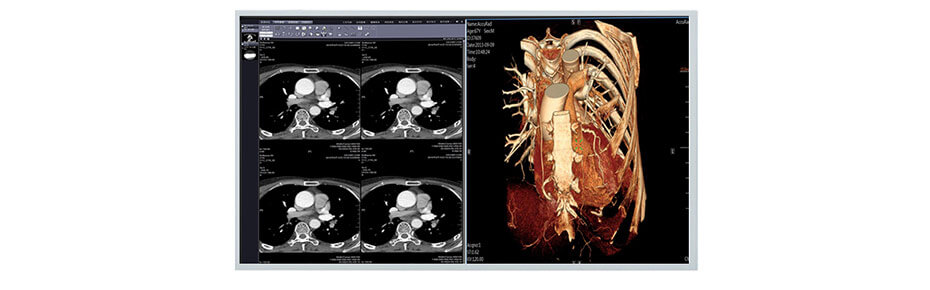

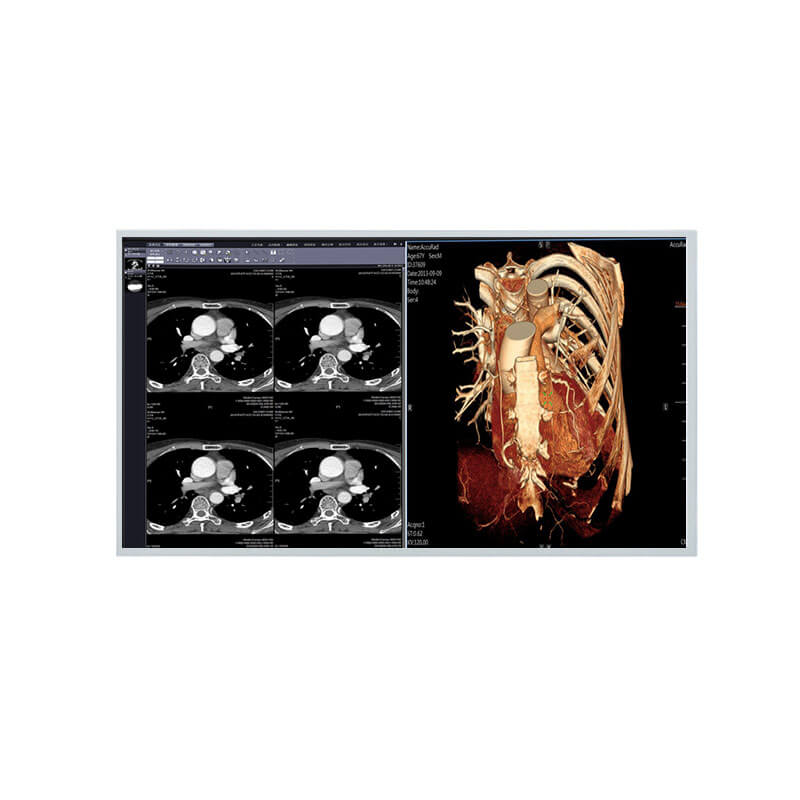

21.6 Inch 4K 3840x2160 OLED Display eDP IPS LCD Module

21.6 Inch 4k Display Overview
EM60UBL63.A supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in Real RGB. It features active area of 478.08(W)×268.92(H) mm, outline size of 488.78(W)×279.42(H)×1.36(D) mm, with surface treament of Glare (Haze 0%), net weight of 427g (Typ.). EM60UBL63.A can provides 400 cd/m² display brightness 1000000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 10-bit gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors. This product emiting itself and have a working life time of 30K hours. EM60UBL63.A utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 20±2.0V. It's typical vertical frame rate (Fv) is 60Hz.
