23.7 Inch Stretched Bar Display Overview

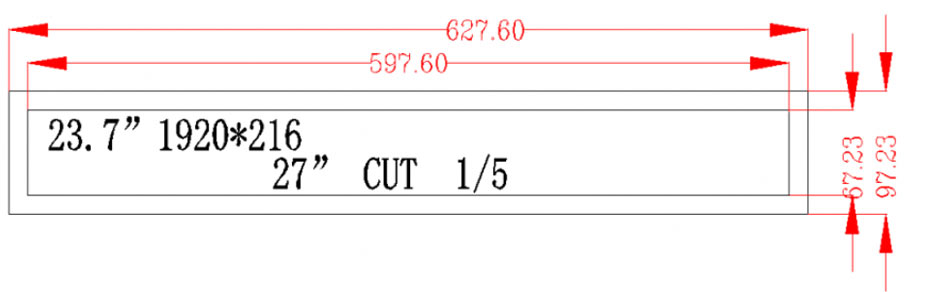

ET237BA01-HD is a 23.7-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a 1920 × 216 resolution, offering high-brightness wide-format visuals optimized for slim, elongated display applications. The module has an active area of 597.6 (W) × 67.23 (H) mm and an outline dimension of 627.6 (W) × 97.23 (H) mm, making it suitable for digital signage, industrial dashboards, and information bars. ET237BA01-HD uses an LVDS interface and provides a typical brightness of 500 cd/m² for clear visibility under various lighting conditions. With wide viewing angles of 89° in all directions (L/R/U/D), it ensures consistent color and contrast. The display operates between 0 to 50°C and can be stored from –20 to 70°C, and it supports touch functionality for interactive applications.
More 23.7 Inch Bar Displays For Reference
ET237BA01-IL (2560x480, LVDS, IPS, 500nits, 0~50°C, 631x117mm)
ET237BA01-HD (1920x216,LVDS, IPS, 500nits, 0~50°C, 627.6x97.23mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
