20.3 Inch 4K 3840x720 LCD Display 750nits High Brightness LVDS IPS LCD Module

20.3 Inch 4k Display Overview
C203RAT01.0 is a 20.3 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, without backlight driver, touchscreen PCAP.C203RAT01.0 supports display 3840(RGB)×720 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 506.88(W)×95.04(H) mm, outline size of 555.01(W)×126.98(H)×30.8(D) mm, viewing area size of 508.08(W)×96.24(H) mm, with surface treament of Anti Fingerprint, Hard coating (7H), Antireflection, net weight of 1.19±0.12Kgs. As a AHVA, Normally Black, Transmissive LCM product, C203RAT01.0 can provides 750 cd/m² display brightness 1100:1 transimissive contrast ratio, 75/75/75/75 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. C203RAT01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 65 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

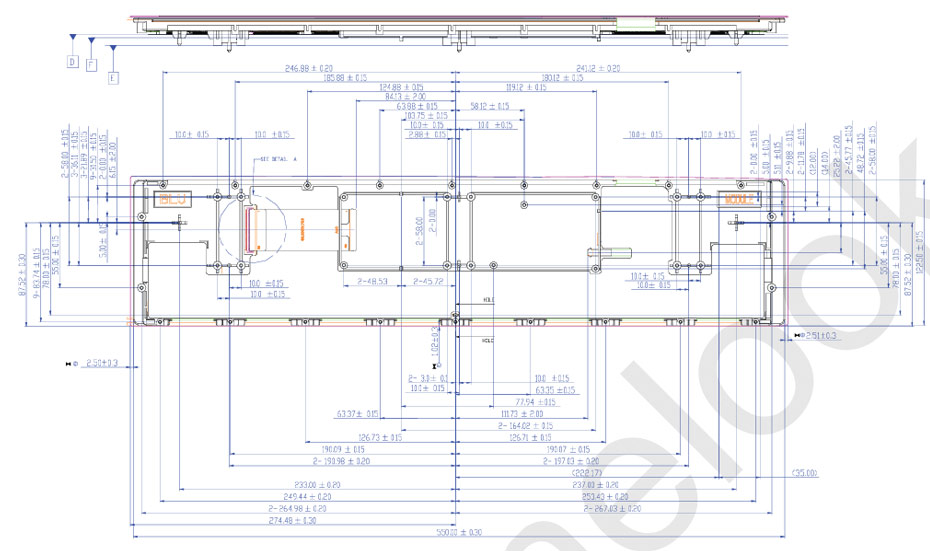

20.3 Inch 4k Display Drawing

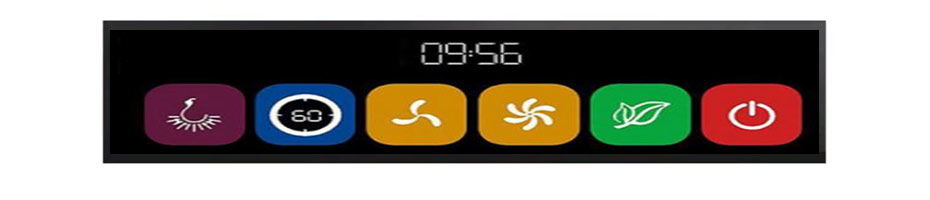

4k &8K Display Applications

Production and Manufacturing
