18.5 Inch 4k Display Overview

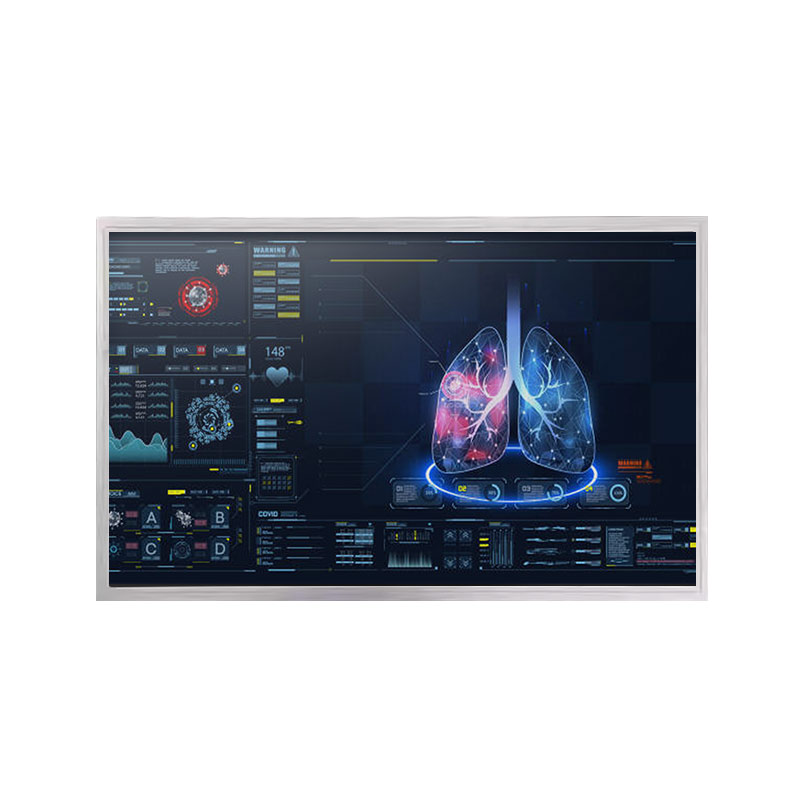

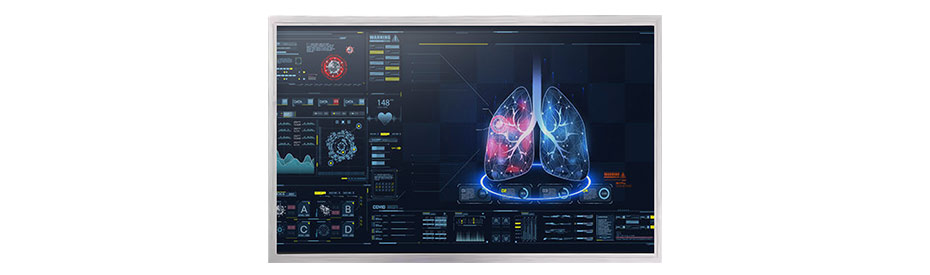

P1850UHF1MA00 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 408.96(W)×230.04(H) mm, outline size of 430.96(W)×252.04(H) mm. As a SFT LCM product, P1850UHF1MA00 can provides 1400 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. P1850UHF1MA00 utilizes eDP as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.
More 18.5 Inch 4k Display For Reference
ET185UH01-R (LCM, 3840x2160, LVDS, 500nits, 0~50°C, 422.2x244.1mm)
P1850UHF1MA00 (LCM, 3840x2160, eDP, 1400nits, -20~70°C, 430.96x252.04mm)
4k &8K Display Applications
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
