2 Inch Capacitive Touch Screen G+F structure I2C Touch Display For Smart Wearable Smart Home Industrial Control Medical Toys

Part No.:ET020CTP01
Size:2″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:38.9x55.9mm
Active Area:31.2x41.4mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70℃ / -30~80℃
Touch:yes

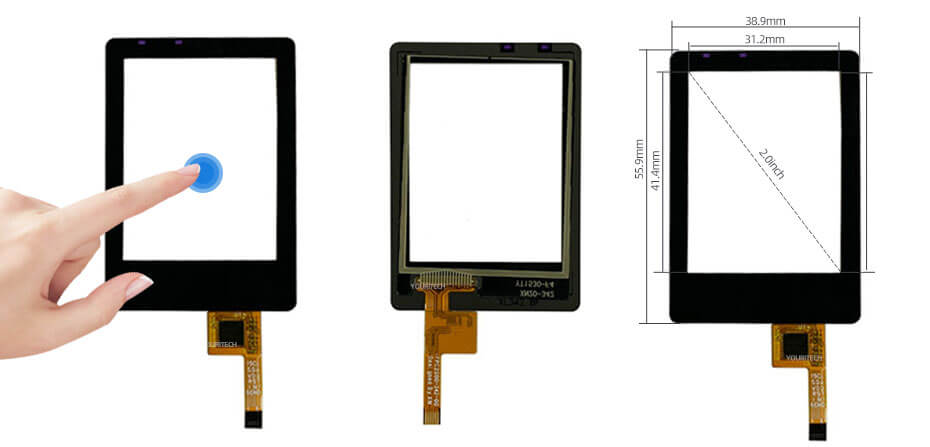

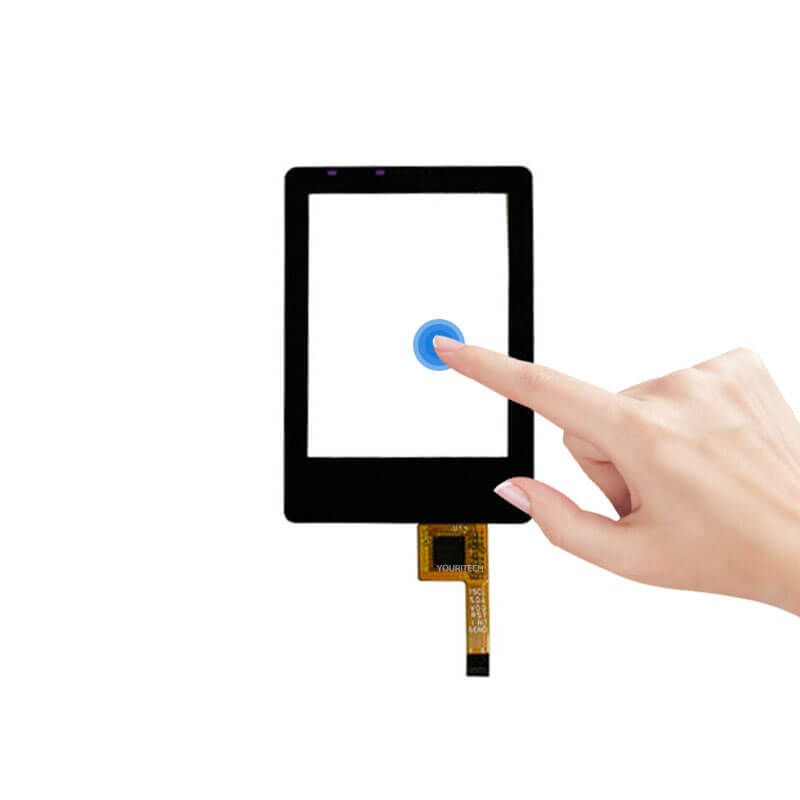

2 Inch Capacitive Touch Screen
TP Structure:Glass +F
Appearance thickness:1.1 mm
Surface hardness:Hard coating (6H)
Touch Points:1 Points
Interface Type:I2C
Display Area:31.2 × 41.4 mm
Outline Dim.:38.9 × 55.9 mm
Channel:10
Operation Temperature:-20~70℃
Storage Temperature:-30~80℃

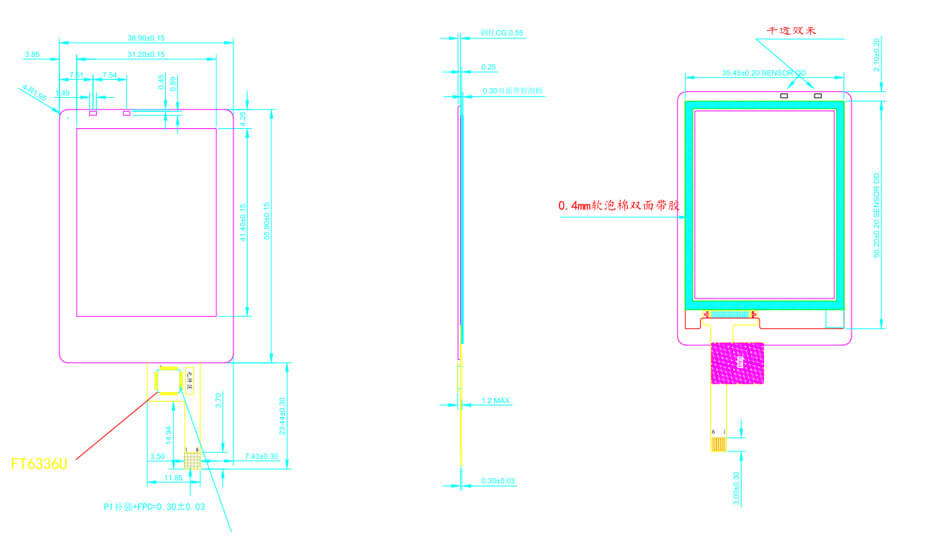

2 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
