0.48"-5" LCD Display (2.4")

2.4 Inch Face Recognition Lock Touch Screen 5:4 FT6236U Intelligent Touch Electronic Security Door Smart Home Capacitive Touch Screen

Part No.:ET024CTP01
Size:2.4″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP

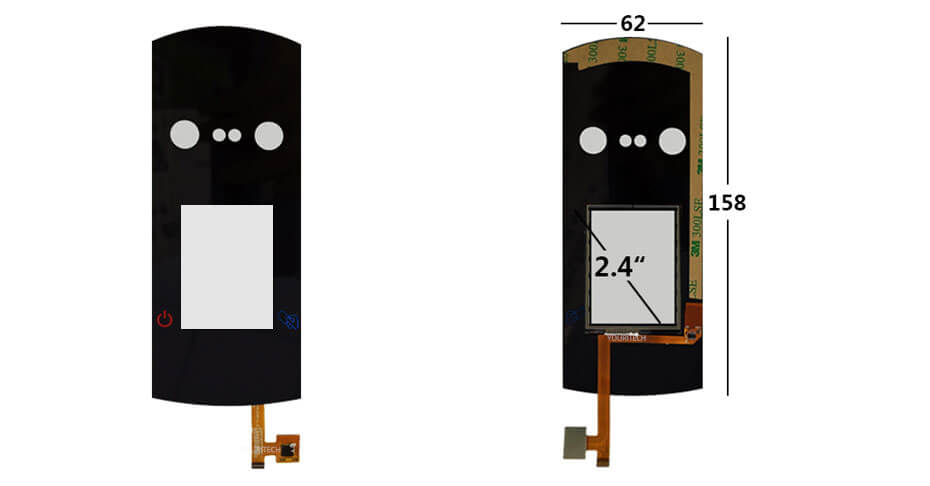

Outline Dimension:62.6x158mm
Active Area:37x46.9mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

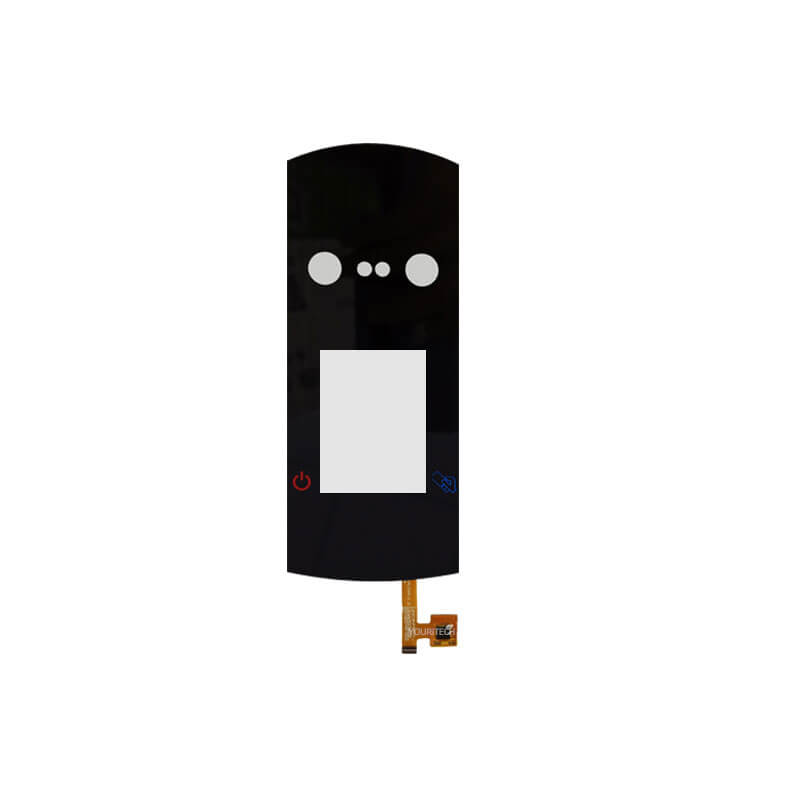

2.4 Inch Capacitive Touch Screen
Controlle IC: FT6236U
Appearance thickness:0.3 mm
Surface hardness:Hard coating (3H)
Touch Points:Multi-touch
Interface Type:I2C
Display Area:37x46.9 mm
Outline Dim.:38.9x55.9 mm
Operation Temperature:-10~60℃
Storage Temperature:-20 ~ 70 °C

2.4 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
