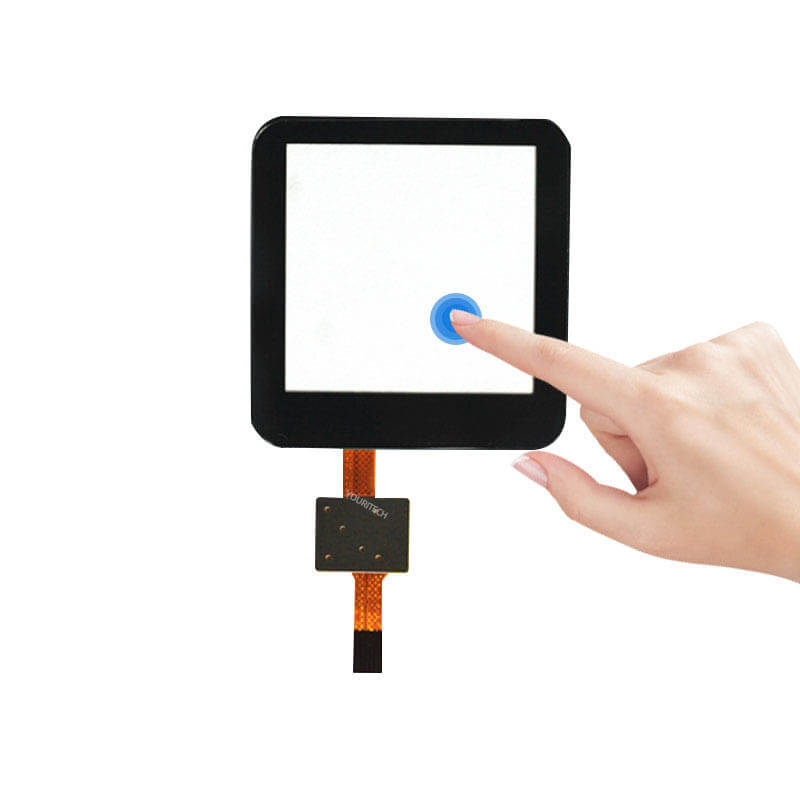

1.54 Inch Capacitive Touch Screen 240x240 320x320 Touch Display For Medical Small Appliances Instrument

Part No.:ET015CTP01
Size:1.54″ inch
Resolution:240x240,320x320
Panel Interface:FT6206
Display mode:PCAP
Outline Dimension:36x37.72mm
Active Area:29.12x29.12mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70℃ / -30~80℃
Touch:yes

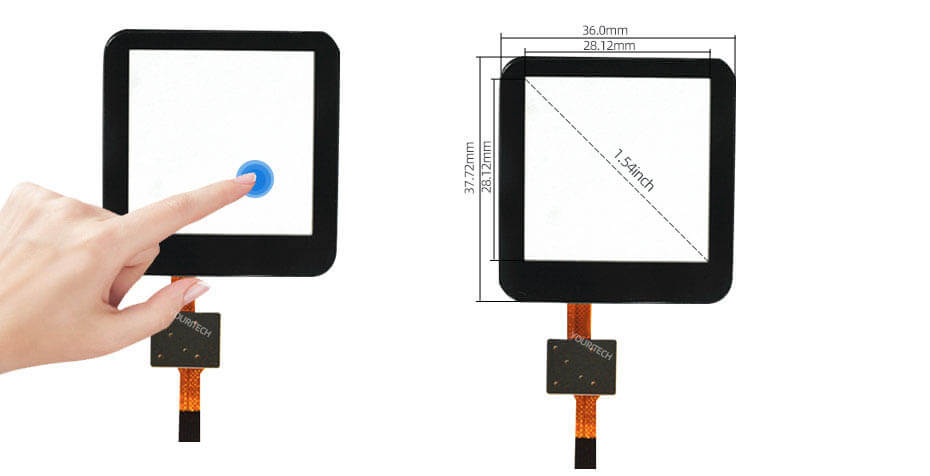

1.54 Inch Capacitive Touch Screen
TP Structure:Glass +F
Sensor Structure:Single
Controller lC:FT6206
Sensing:Single capacitance
Touch Points:1 Points
Interface Type:I2C
Connector (with Host):ZIF
TP OD (with Cover):36x37.72mm
TP AA:29.12x29.12mm
TP VA:28.12x28.12mm
Channel:10
Operation Temperature:-20~70℃
Storage Temperature:-30~80℃
Humidity:20~85%RH

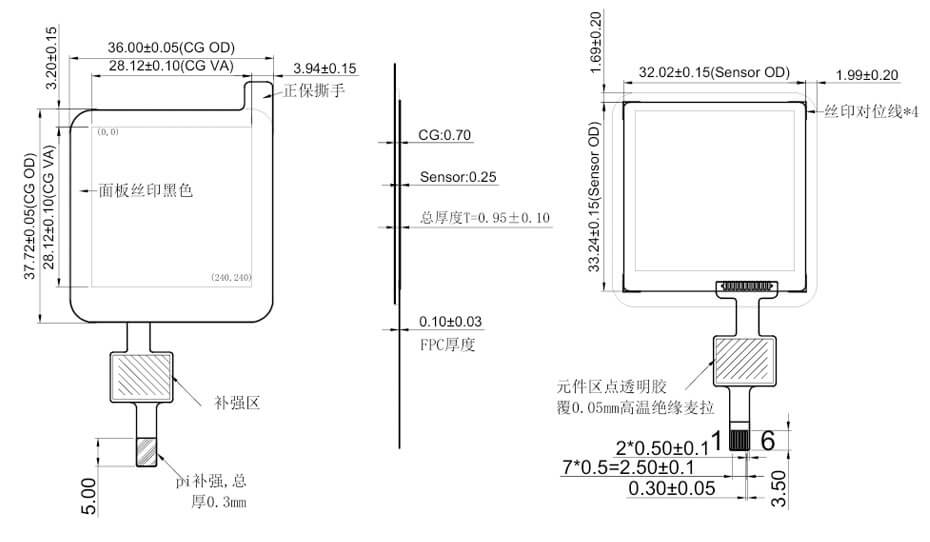

1.54 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
