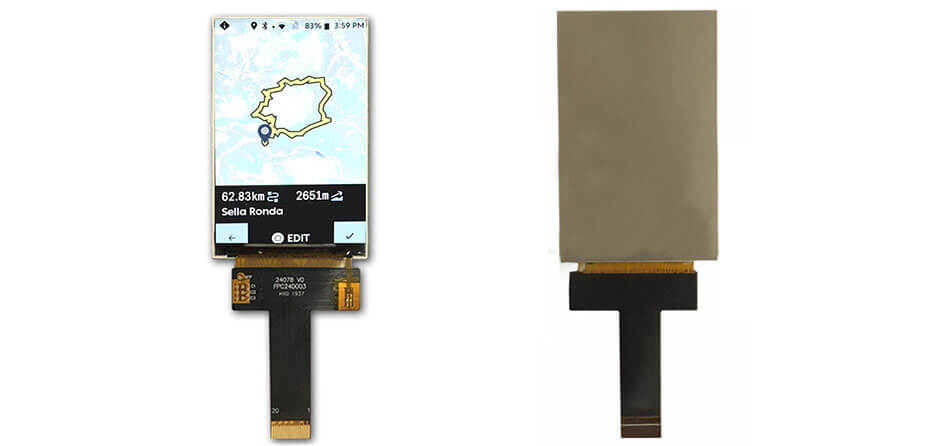

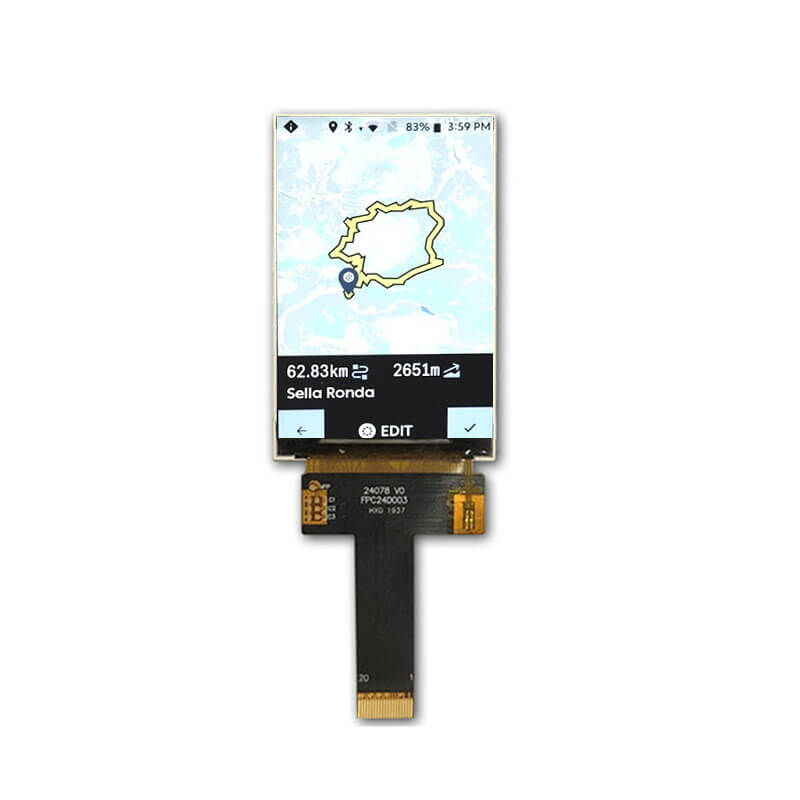

ET024HVFID078 is a 2.4-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 320×480 with an aspect ratio of 2:3 (W:H) and adopts a MIPI interface for efficient data transmission. The display offers an active area of 33.12 (W) × 49.68 (H) mm and an outline dimension of 39.52 (W) × 60.68 (H) mm. With a brightness of 750 cd/m², it ensures good visibility under strong ambient light, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.
More 2.4 Inch Cycling Computer Bike Display For Reference
ET024VG10-T (240×320, CPU/RGB/SPI, LCM, 1500nits, -20~70°C, 42.92×60.26mm)
COM24H2P71ULC (240×320, TTL, LCM, 270nits, -30~85°C, 42.5×58.5mm)
COM24H2P96ULC (240×320, CPU, LCM, 300nits, -20~70°C, 42.5×58.5mm)
COM24H2P94ULC (240×320, TTL, LCM, 300nits, -20~70°C, 42.5×58.5mm)
ET024HVFID078 (320×480, MIPI, LCM, 750nits, -20~70°C, 39.52×60.68mm)
ET024VG30-K (480×640, MIPI, LCM, 800nits, -30~80°C, 42.92×60.26mm)
ET024AM02-H (450×600, MIPI/CPU/SPI , OLED, 800nits, -30~80°C, 38.72×51.56mm)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
