0.48"-5" LCD Display (2.8")

2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board

Part No.:ET028CR01-GX
Size:2.8″ inch
Resolution:480x480
Panel Interface:MIPI
Display mode:Normally black
Outline Dimension:73.03x76.48x2.3mm
Active Area:70.128x70.128mm
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~60°C / -30~80°C
Touch:no

2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board Overview

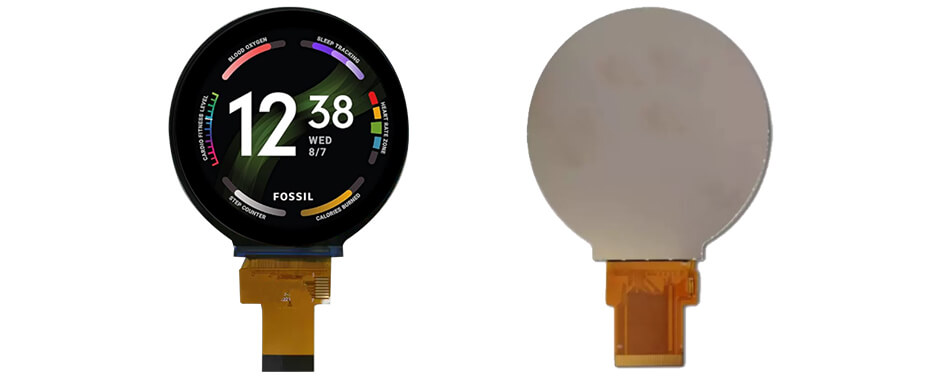

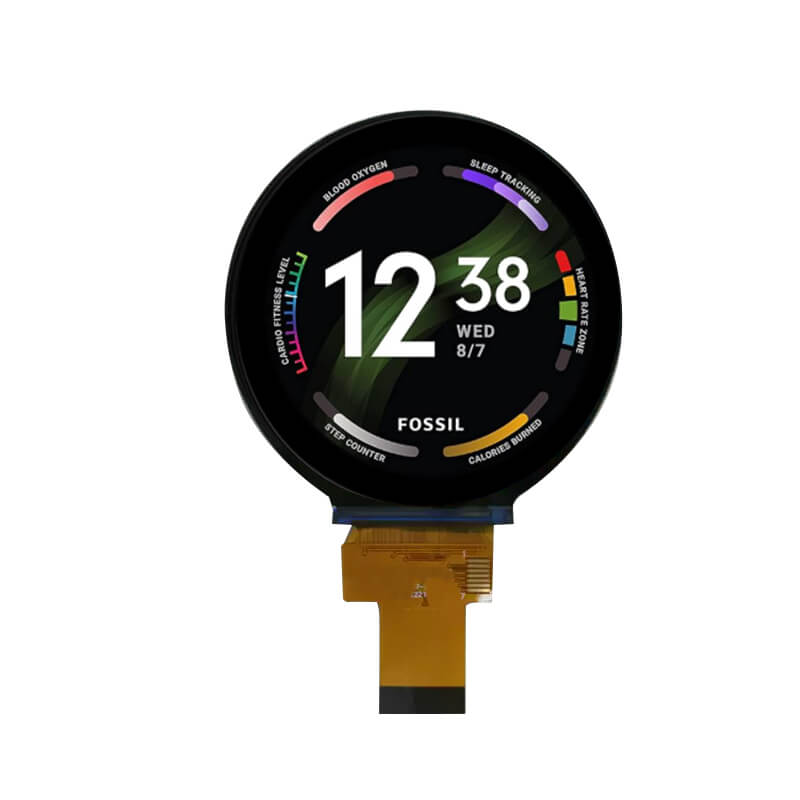

ET028CR01-GX is a 2.8-inch round IPS TFT-LCD display featuring a 480×480 resolution and a Normally Black display mode. It uses a MIPI interface and provides an IPS full-view viewing angle for clear and consistent images from different viewing directions. The display features a 350 cd/m² brightness, an active area of 70.128(W) × 70.128(H) mm, and an outline dimension of 73.03(W) × 76.48(H) × 2.30(D) mm. ET028CR01-GX supports an operating temperature range of -20°C to 60°C and a storage temperature range of -30°C to 80°C. It is designed for compact embedded applications requiring a high-quality circular display, with optional capacitive touchscreen and HDMI driver board solutions available.
2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board

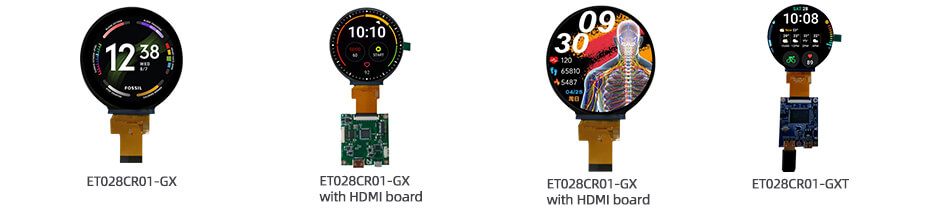

More 2.8 Inch Circular Display Solution For Reference
ET028CR01-GX (Non Touch)
ET028CR01-GX with HDMI board
ET028CR01-GXT with HDMI board
ET028CR01-GXT (Capacitive Touch)
