2.8 Inch Round Display 480×480 MIPI 30-Pin IPS Circular Display with Capacitive Touchscreen & HDMI Driver Board

Part No.:ET028CR03-GX
Size:2.8″ inch
Resolution:480x480
Panel Interface:MIPI 30-Pin
Display mode:Normally Black
Outline Dimension:73.03x76.48x2.30mm
Active Area:/
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:350nits
Operation / Storage Temp:-20~70°C / /
Touch:no

2.8 Inch Round Display 480×480 MIPI 30-Pin IPS Circular Display with Capacitive Touchscreen & HDMI Driver Board Overview

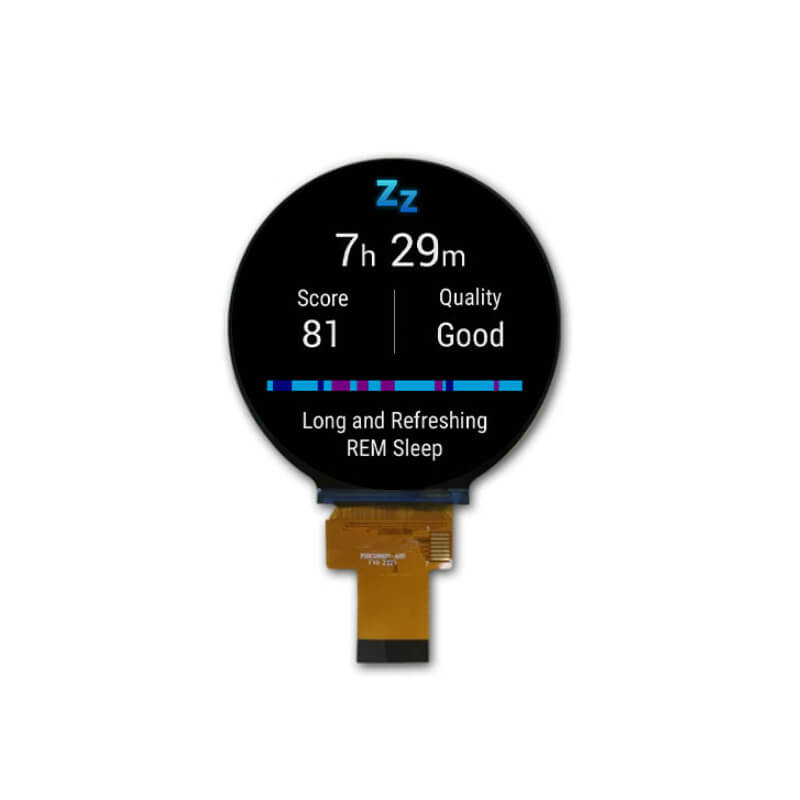

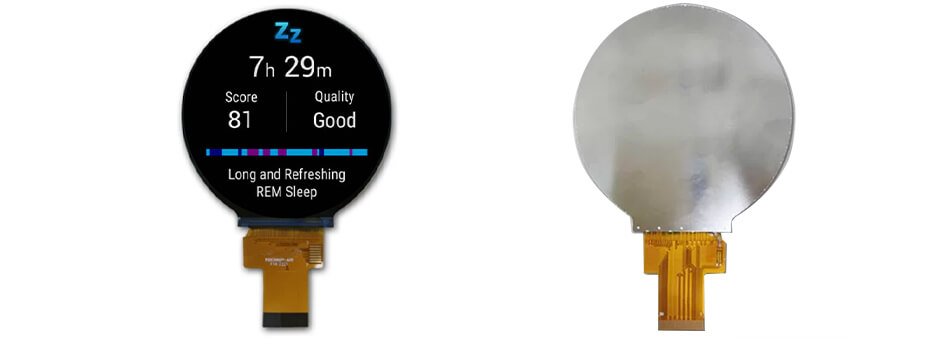

ET028CR03-GX is a 2.8-inch round IPS TFT-LCD display featuring a 480×480 resolution and a square pixel format. It adopts a Normally Black display mode and a 30-pin MIPI interface for reliable high-speed image transmission. The display provides a brightness of 350 cd/m² and an IPS wide viewing angle for clear and consistent images from different viewing directions. With an outline dimension of 73.03(W) × 76.48(H) × 2.30(D) mm, the ET028CR03-GX is designed for compact embedded applications requiring a high-quality circular display. It supports an operating temperature range of -20°C to 70°C. A capacitive touchscreen and HDMI driver board can be offered as optional solutions for complete display applications.
2.8 Inch Round Display 480×480 MIPI 30-Pin IPS Circular Display with Capacitive Touchscreen & HDMI Driver Board

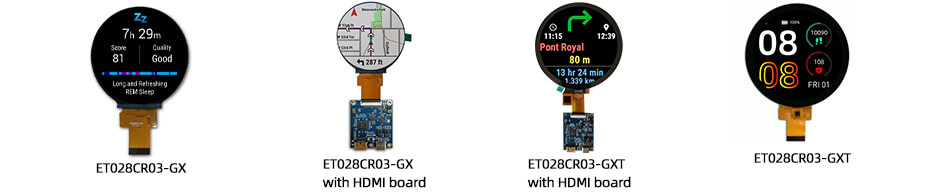

More 2.8 Inch Circular Display Solution For Reference
ET028CR03-GX (Non Touch)
ET028CR03-GX with HDMI board
ET028CR03-GXT with HDMI board(Capacitive Touch)
ET028CR03-GXT(Capacitive Touch)
