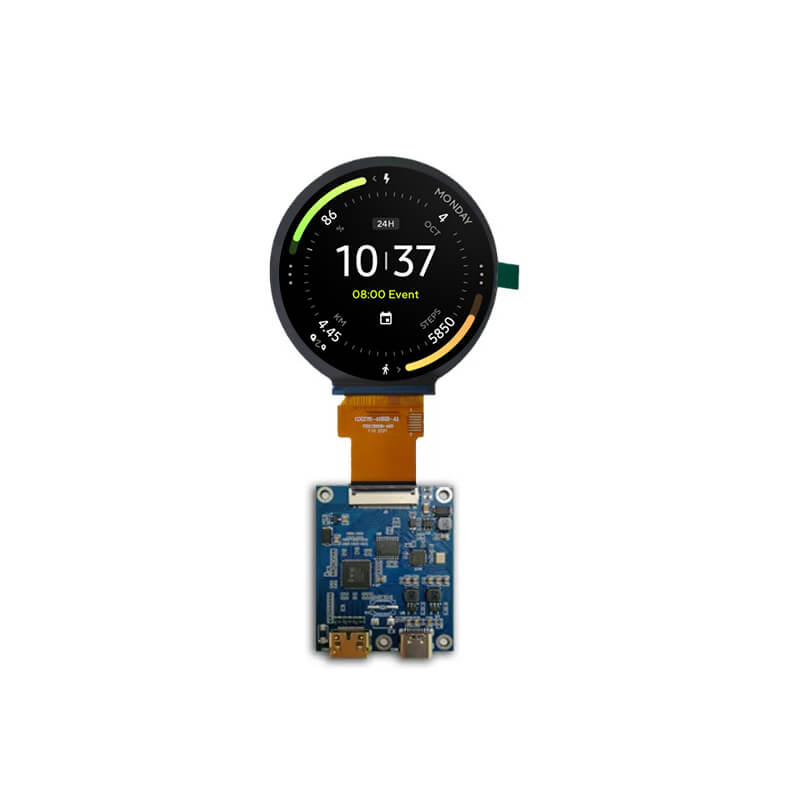

2.8 Inch Round Display 480×480 MIPI IPS Circular Display with HDMI Driver Board

Part No.:ET028CRMO01-GX
Size:2.8″ inch
Resolution:480x480
Panel Interface:MIPI
Display mode:Normally black
Outline Dimension:73.03x76.48x2.30mm
Active Area:70.128x70.128mm
Viewing Angle L/R/U/D:IPS
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~60°C / -30~80°C
Touch:no

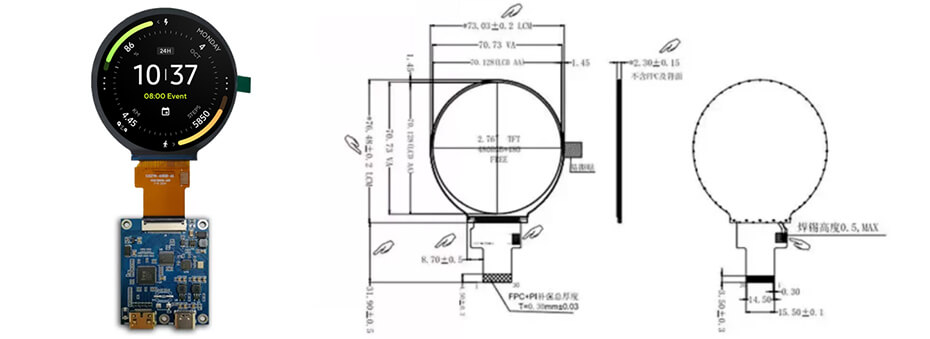

2.8 Inch Round Display 480×480 MIPI IPS Circular Display with HDMI Driver Board Overview
ET028CRMO01-GX is a 2.8-inch diagonal round IPS LCD display product. ET028CRMO01-GX supports a display resolution of 480×480 and features a MIPI panel interface. It operates in Normally Black display mode and has an active area of 70.128(W)×70.128(H) mm and an outline size of 73.03(W)×76.48(H)×2.30(D) mm. The display provides 350 cd/m² display brightness and features IPS technology with wide viewing angles. ET028CRMO01-GX does not include a touch function and supports an operating temperature range of -20°C to 60°C and a storage temperature range of -30°C to 80°C.
2.8 Inch Round Display 480×480 MIPI IPS Circular Display with HDMI Driver Board
