0.48"-5" LCD Display (2.8")

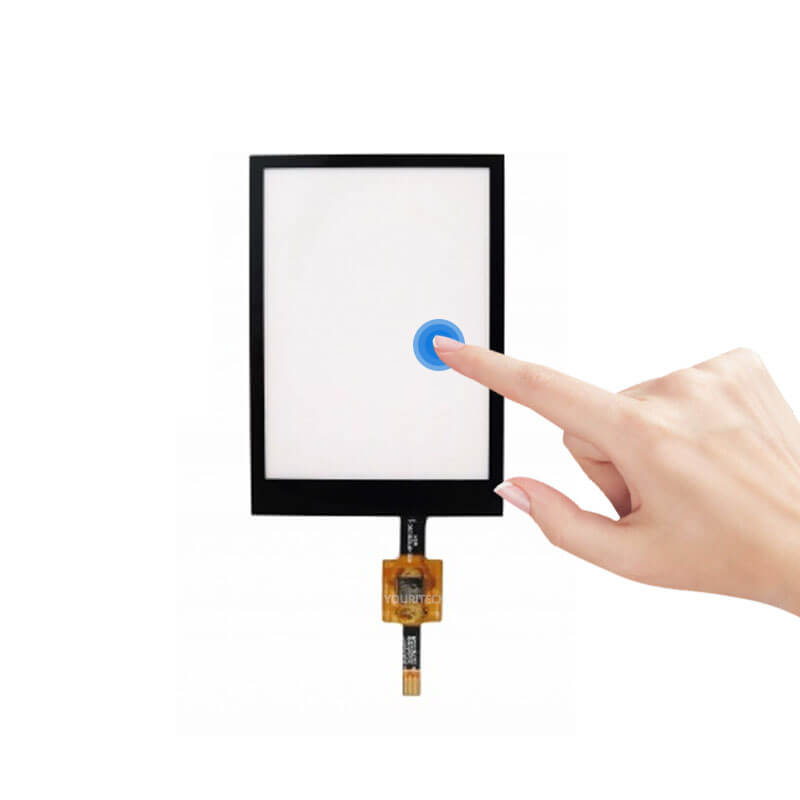

2.8 Inch Capacitive Touch Screen FT6336U Industrial Control Industrial Vehicle Medical Handheld Multi-touch G+F Structure Capacitive Touch Screen

Part No.:ET028CTP01
Size:2.8″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:49.8x68.7mm
Active Area:49.6x65.64mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

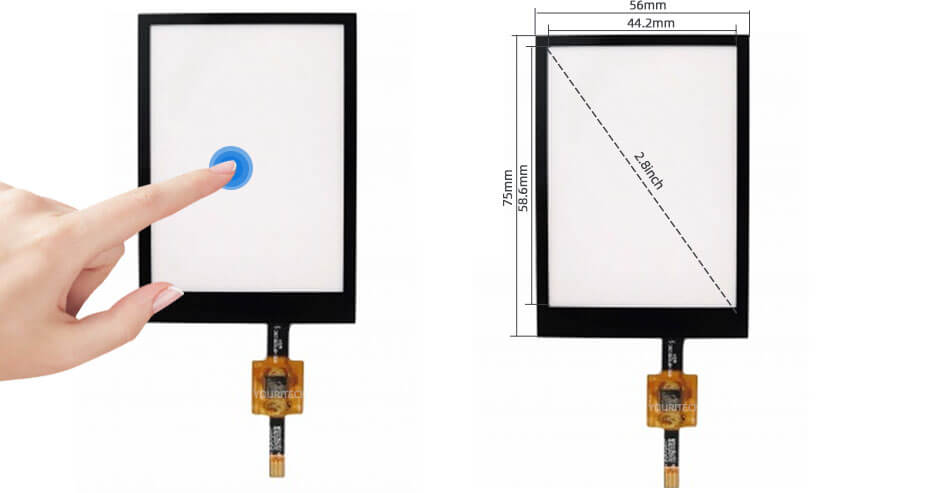

2.8 Inch Capacitive Touch Screen
Controlle IC:FT6336U
Appearance thickness:0.8 mm
Surface hardness:Hard coating (6H)
Touch Points:Multi-touch
Interface Type:I2C
Display Area:49.6x65.64 mm
Outline Dim.:49.8x68.7 mm
Operation Temperature:-10~60℃
Storage Temperature:--20 ~ 70 °C

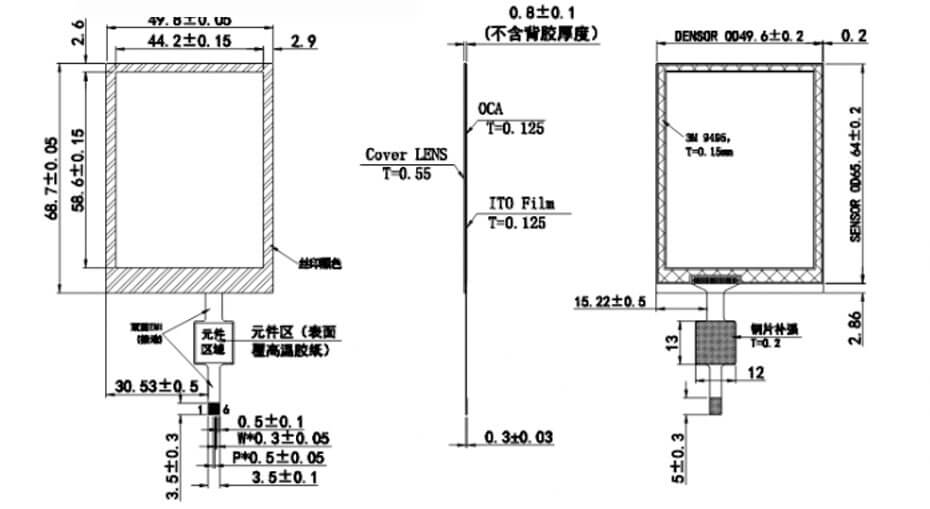

2.8 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)
