0.48"-5" LCD Display (2.4")

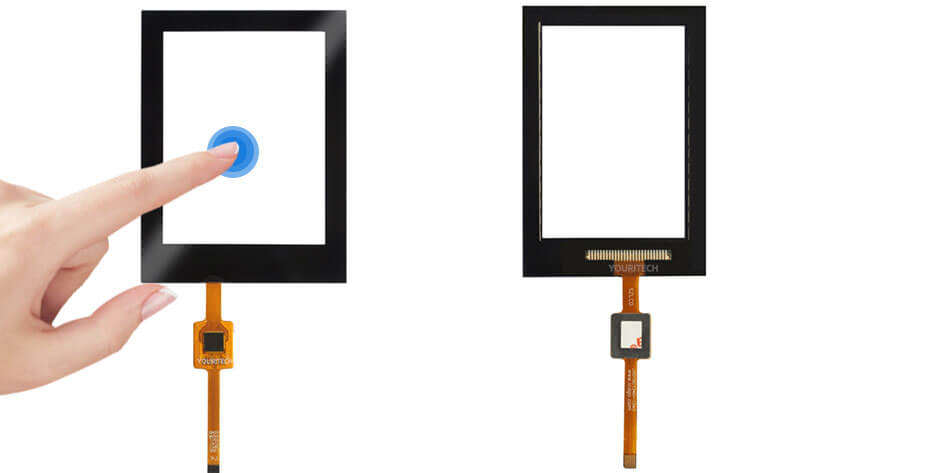

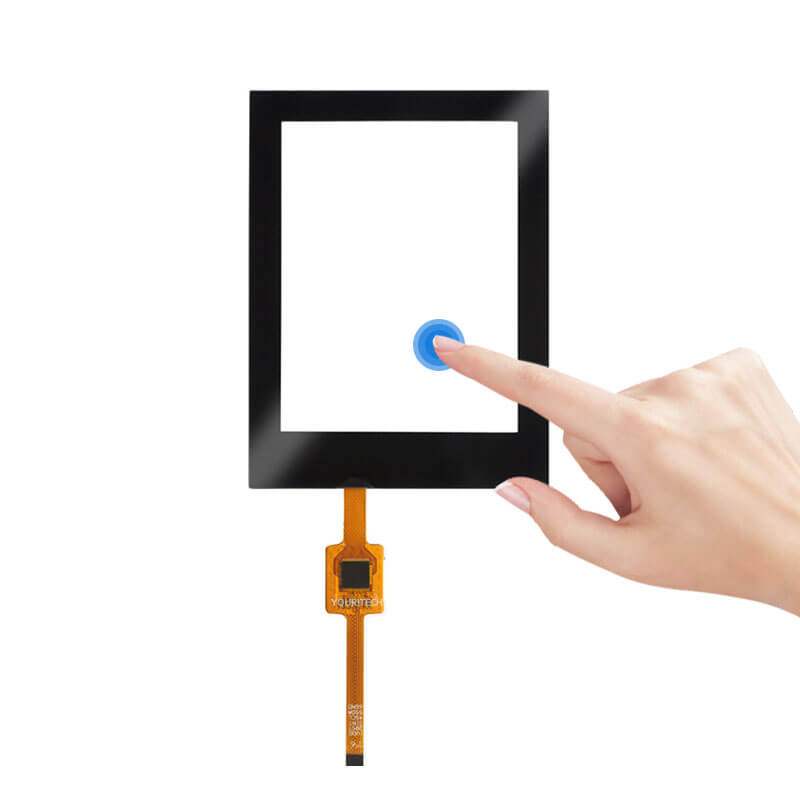

2.4 Inch Capacitive Touch Screen 3:4 G+F Fully Tempered Frame Adhesive 240x320 Industrial-grade Touch Screen

  • Part No.:ET024CTP03
  • Size:2.4″ inch
  • Resolution:240x320
  • Panel Interface:I2C
  • Display mode:PCAP
  • Outline Dimension:48.7x66.2x0.95mm
  • Active Area:37.7x49.9mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:yes
Get a quote


2.4 Inch Capacitive Touch Screen
Controlle IC: G+F 6336U
Resolution:240x320
Touch Points: 2 points touch
Interface Type:I2C
Display Area:37.7x49.9mm
Outline Dim.:48.7x66.2x0.95mm
Operation Temperature:-10~60℃
Storage Temperature:--20 ~ 70 °C





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
