0.48"-5" LCD Display (2.8")

2.8 Inch Capacitive screen G+F 3:4 FT6336U Fully Tempered Framed Adhesive Industrial-grade Touch Screen

Part No.:ET028CTP02
Size:2.8″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:56x75mm
Active Area:50.7x68mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~60°C / -30~70°C
Touch:yes

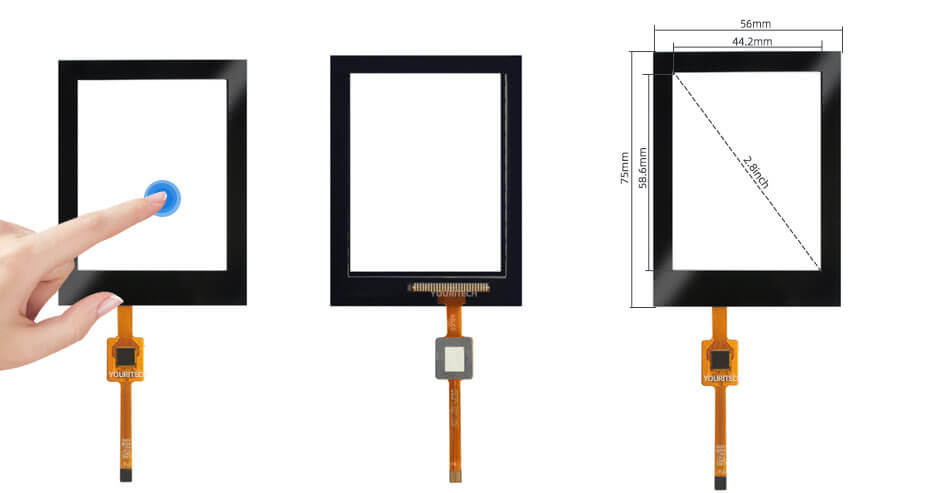

2.8 Inch Capacitive Touch Screen
Controlle IC:FT6336U
Appearance thickness:0.25 mm
Surface hardness:Hard coating (6H)
Touch Points:Single-touch
Interface Type:I2C
Display Area:50.7x68 mm
Outline Dim.:56x75 mm
Operation Temperature:-20 ~ 60 °C
Storage Temperature:-30 ~ 70 °C

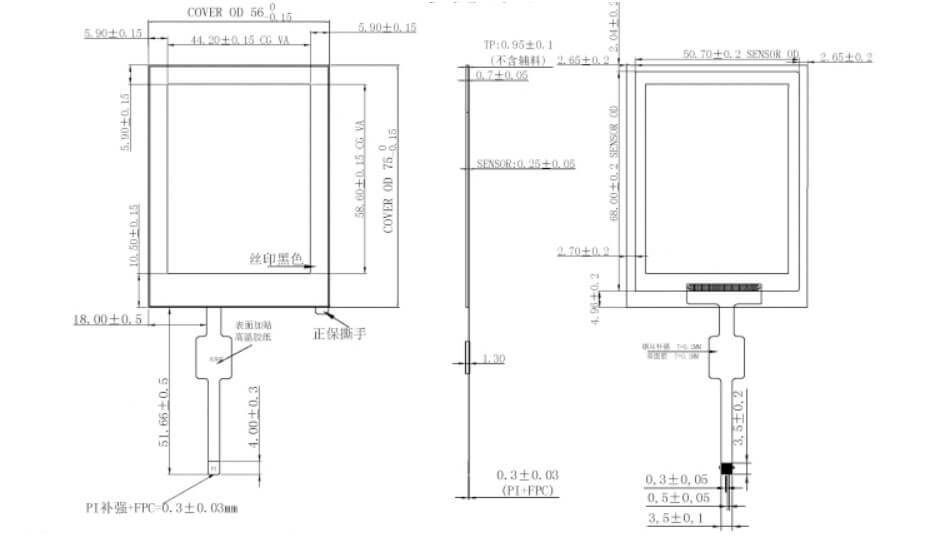

2.8 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
