2.64 Inch Square Display Overview

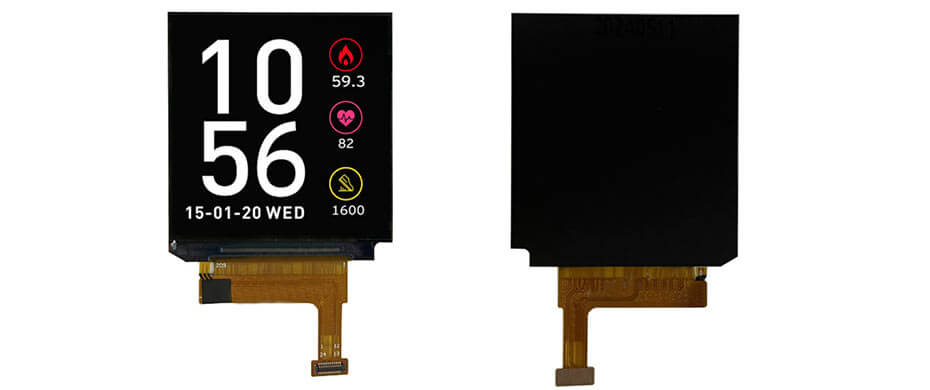

ET026SQ01-H is a 2.64-inch diagonal square TFT LCD display featuring a 480×480 resolution and supporting a MIPI interface. The display operates in transmissive mode and provides an active area of 43.2(W)×43.2(H) mm, with an outline size of 46.2(W)×51.38(H) mm. ET026SQ01-H delivers a typical brightness of 400 cd/m² and offers wide viewing angles of 80° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
