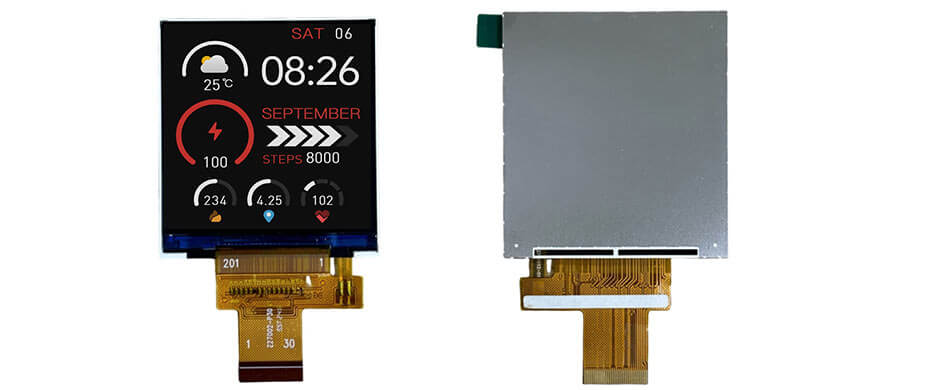

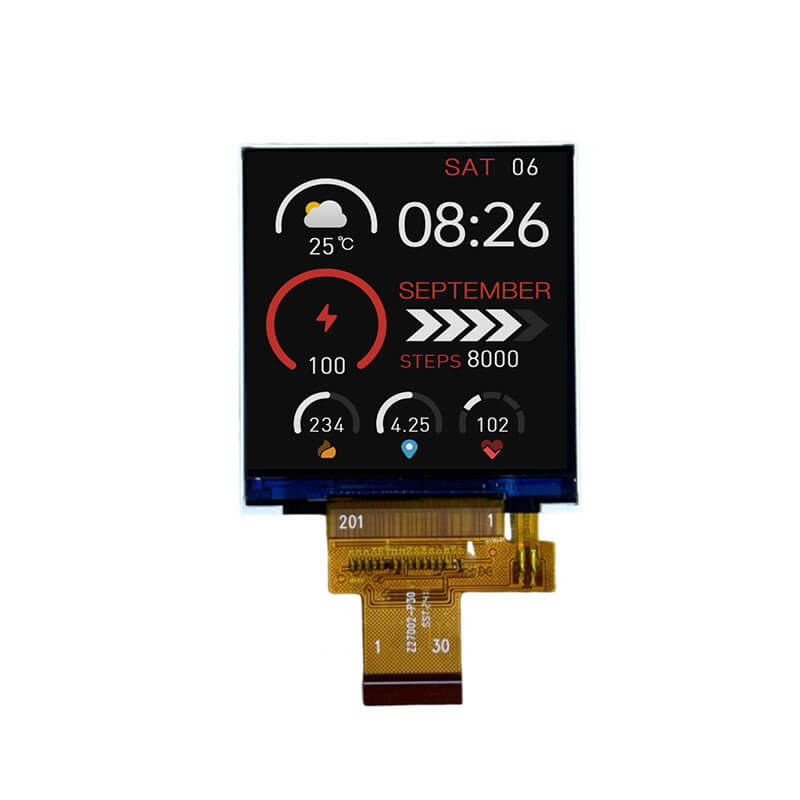

2.7 Inch Square Display 320x320 MIPI 500nits High Brightness TFT LCD Display

Part No.:ET027SQ01-Z
Size:2.7″ inch
Resolution:320x320
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:53.54x58.74mm
Active Area:48.96x48.96mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70℃ / -30~80℃
Touch:no

2.7 Inch Square Display Overview
ET027SQ01-Z is a 2.7-inch diagonal square TFT LCD display featuring a 320×320 resolution and supporting a MIPI interface. The display operates in transmissive mode and provides an active area of 48.96(W)×48.96(H) mm, with an outline size of 53.54(W)×58.74(H) mm. ET027SQ01-Z delivers a typical brightness of 500 cd/m² and offers wide viewing angles of 85° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –20 °C to 70 °C and storage from –30 °C to 80 °C. This model does not include touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
