2.4 Inch Wide Temperature OLED Display 450×600 MIPI CPU SPI -30°C to 80°C High Brightness 800nits AMOLED Display With On-Cell Touch

2.4 Inch Wide Temperature AMOLED Display Overview

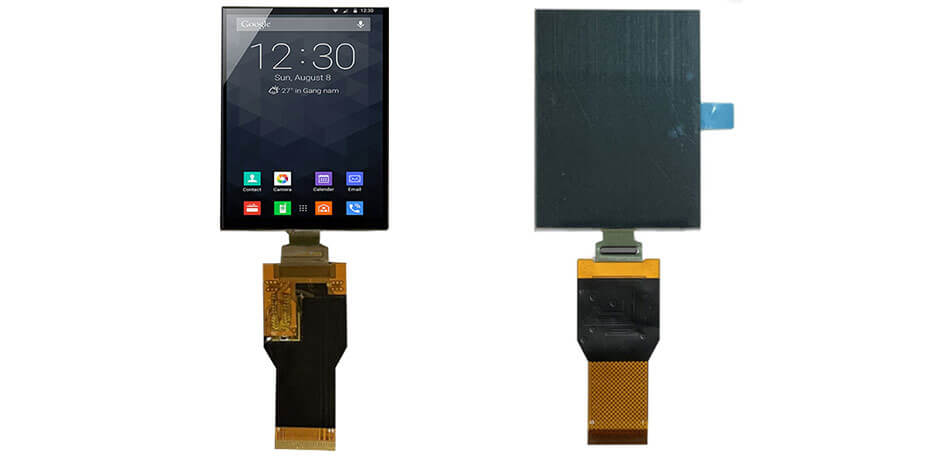

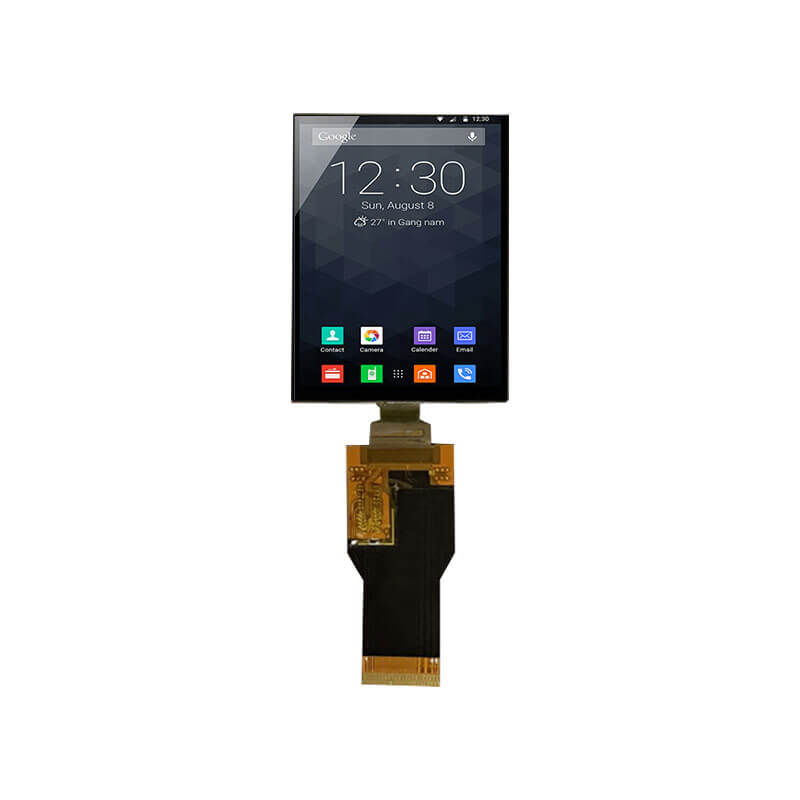

ET024WT01-HT is a 2.4 inch diagonal AM-OLED display screen product, self-emitting. ET024WT01-HT supports a display resolution of 450×600, whose pixels are arranged in an active matrix structure. It features an active area of 36.72(W) × 48.96(H) mm and an outline dimension of 38.72(W) × 51.56(H) mm. The module supports multiple interfaces including MIPI, CPU, and SPI, providing flexible integration for various embedded systems. ET024WT01-HT delivers a high brightness of 800 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 80°C and a storage temperature range of -40°C to 80°C. This display module integrates an on-cell touch panel, enabling responsive and accurate touch input.

More 2.4 Inch Wide Temperature Displays For Reference
ET024VG30-K (LCD, 480×640, MIPI, IPS, 800nits, -30~80°C, 42.92×60.26mm)
ET024WT01-HT (OLCD, 450×600, MIPI/CPU/SPI, IPS, 800nits, -30~80°C, 38.72×51.56mm, On-Cell)
ET024WT01-GLT (LCD, 480×640, MIPI, IPS, 325nits, -30~80°C, 42.72×60.26mm, CTP)
