2.4 Inch Wide Temperature LCD Display Overview

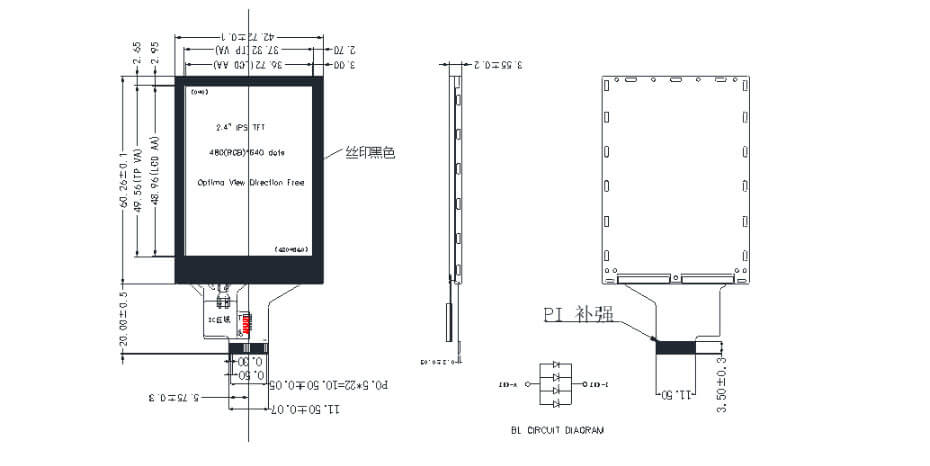

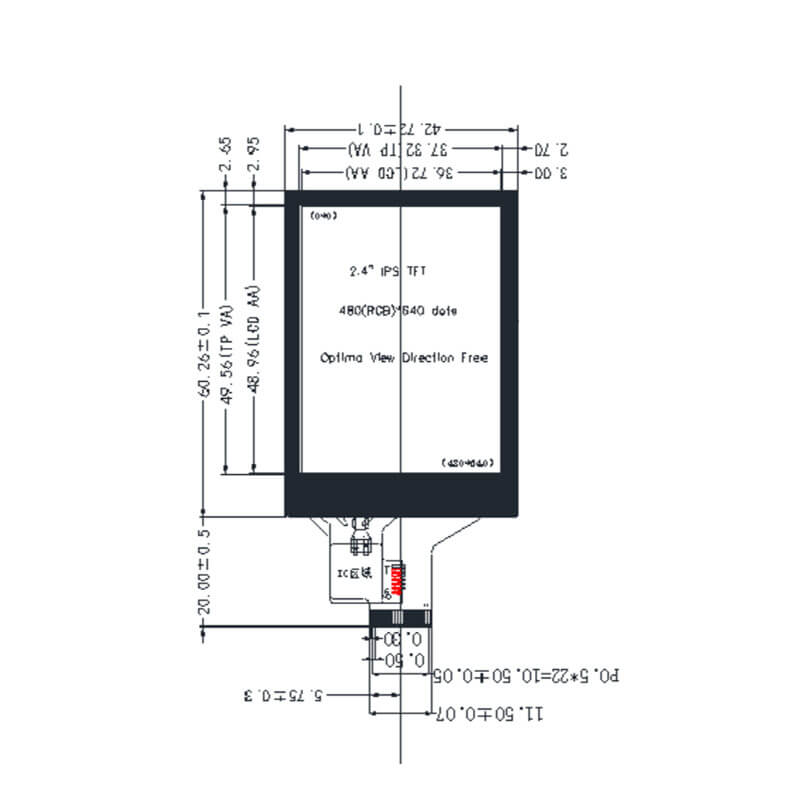

ET024WT01-GLT is a 2.4 inch diagonal TFT-LCD display screen product. ET024WT01-GLT supports a display resolution of 480×640, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 36.72(W) × 48.96(H) mm and an outline dimension of 42.72(W) × 60.26(H) mm. The module adopts a transmissive display mode and supports a high-speed MIPI interface for communication. ET024WT01-GLT provides a typical display brightness of 325 cd/m² and offers a wide viewing angle of 85/85/85/85 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 80°C and a storage temperature range of -30°C to 80°C. This display module integrates a capacitive touch panel, enabling responsive and accurate touch input.

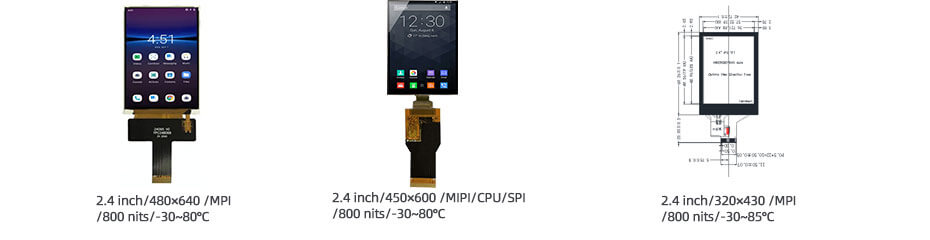

More 2.4 Inch Wide Temperature Displays For Reference
ET024VG30-K (LCD, 480×640, MIPI, IPS, 800nits, -30~80°C, 42.92×60.26mm)
ET024WT01-HT (OLCD, 450×600, MIPI/CPU/SPI, IPS, 800nits, -30~80°C, 38.72×51.56mm, On-Cell)
ET024WT01-GLT (LCD, 480×640, MIPI, IPS, 325nits, -30~80°C, 42.72×60.26mm, CTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
