2.3 Inch Wide Temperature LCD Display 480×360 MIPI -30°C to 80°C High Brightness 500nits TFT LCD Display

2.3 Inch Wide Temperature PMOLED Display Overview

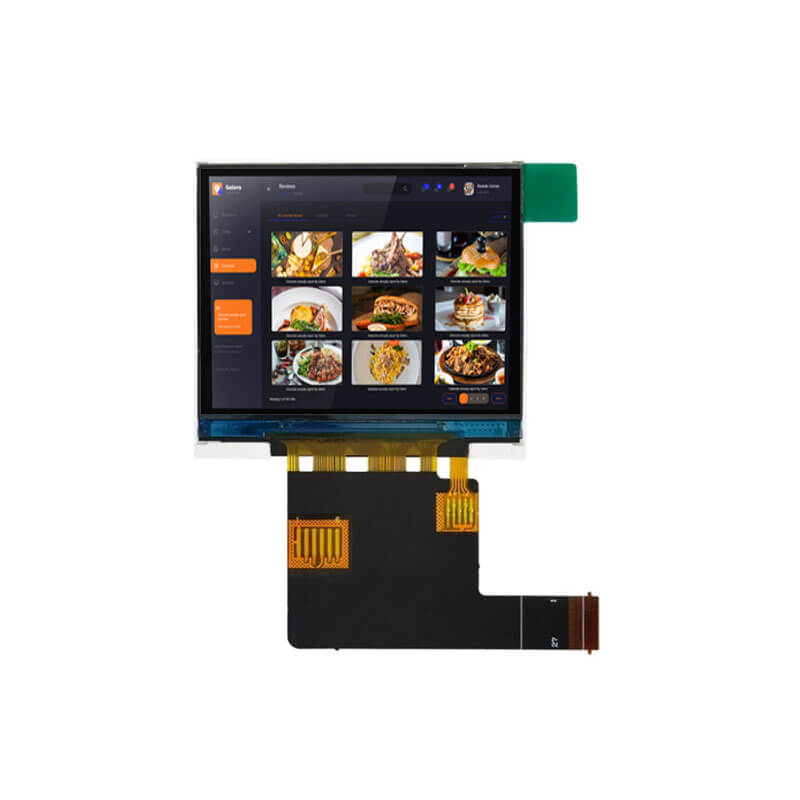

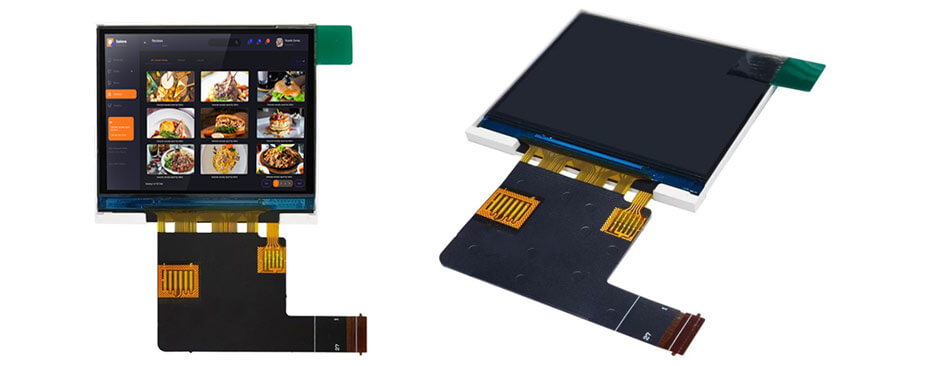

ET023WT01-ZW is a 2.3 inch diagonal TFT-LCD display screen product. ET023WT01-ZW supports a display resolution of 480×360, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 46.8(W) × 35.1(H) mm and an outline dimension of 50.9(W) × 45.8(H) mm. The module adopts a transmissive display mode and supports a high-speed MIPI interface for communication. ET023WT01-ZW provides a typical display brightness of 500 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 80°C and a storage temperature range of -30°C to 80°C. This display module does not include a touch panel.

More 2.3 Inch Wide Temperature Displays For Reference
ET023WT01-JRT (PMOLED, 256×96, SPI, IPS, 150nits, -40~85°C, 111.1×26.15mm,4-wire Resistive Touch)
ET023WT01-ZW (LCD, 480×360, MIPI, IPS, 500nits, -30~80°C, 50.9×45.8mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
