2.7 Inch Wide Temperature LCD Display 256×64 CPU RGB SPI -30°C to 80°C TFT LCD Display

2.7 Inch Wide Temperature LCD Display Overview

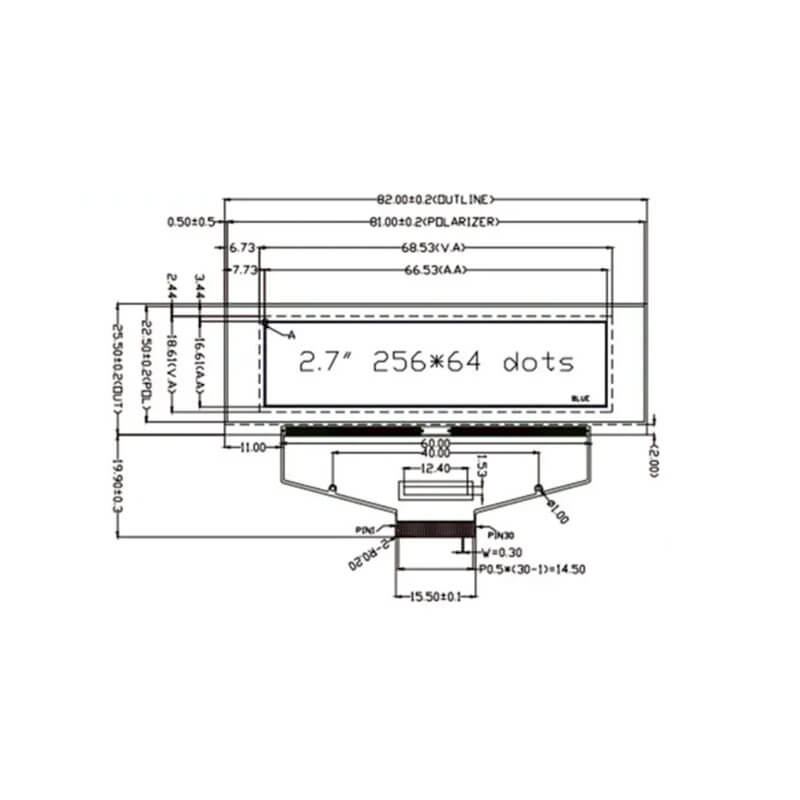

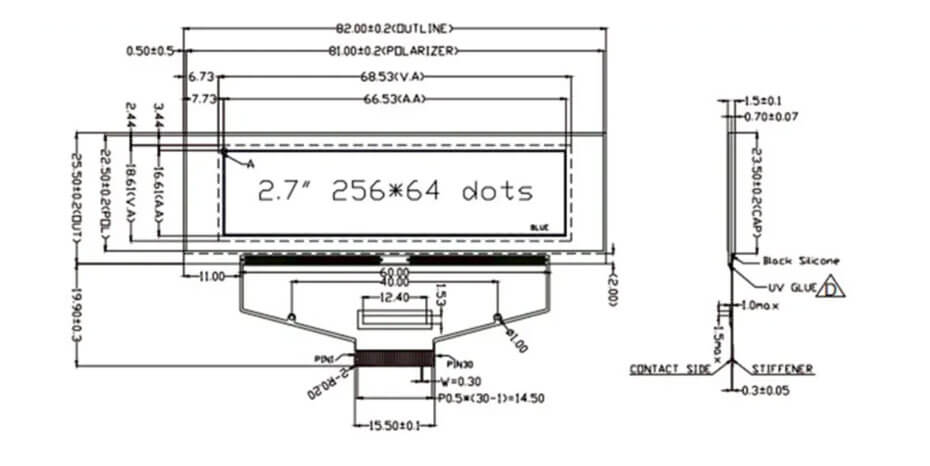

ET027PM01-X is a 2.7 inch diagonal TFT-LCD display screen product. ET027PM01-X supports a display resolution of 256×64 with a wide aspect ratio, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 66.53(W) × 16.61(H) mm and an outline dimension of 82(W) × 25.5(H) mm. The module adopts a transmissive display mode and supports multiple interfaces including CPU, RGB, and SPI for flexible system integration. ET027PM01-X provides a typical display brightness of 60 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -30°C to 80°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.

More 2.7 Inch Wide Temperature Displays For Reference
ET027UH01-G (OLCD, 800×600, MIPI, IPS, 350nits, -40~85°C, 56.6×47.25mm)
ET027PM01-X (LCD, 256×64, CPU/RGB/SPI, IPS, 60nits, -30~80°C, 82×25.5mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
