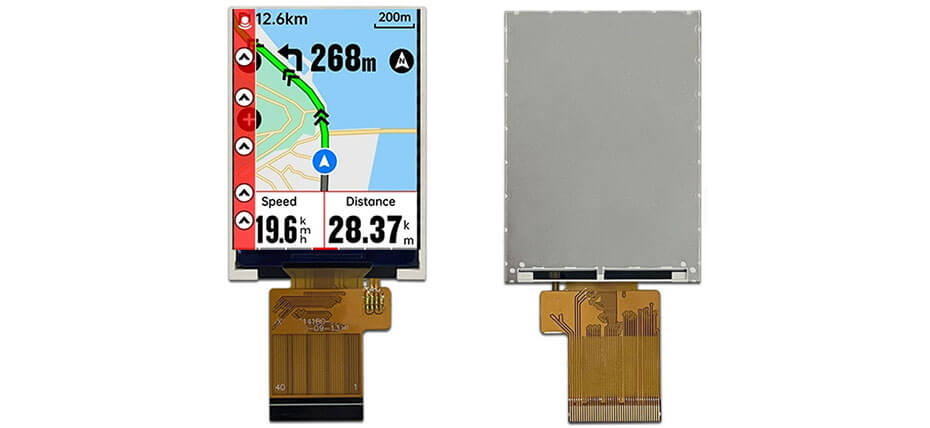

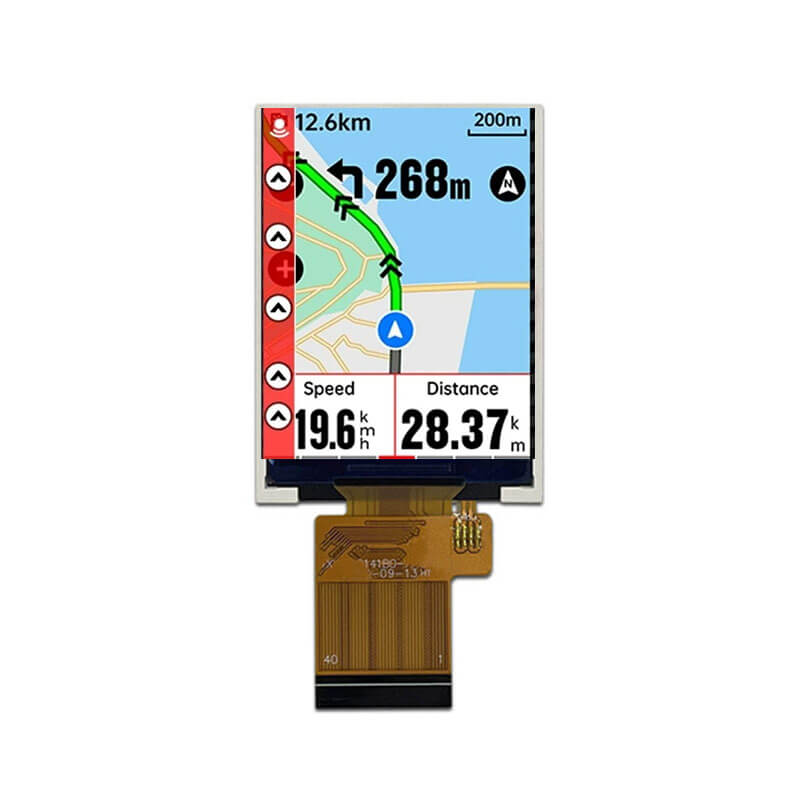

2.4 Inch TFT LCD Display 240×320 TTL IPS LCD Display For Automotive

Part No.:ET024HV10-T
Size:2.4″ inch
Resolution:240x320
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:42.72x60.26mm
Active Area:36.72x48.96mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.4 Inch TFT LCD Display 240×320 TTL IPS LCD Display For Automotive Video

2.4 Inch TFT LCD Display 240×320 TTL IPS LCD Display For Automotive Overview

ET024HV10-T is a 2.4-inch diagonal TFT-LCD display product with a transmissive display mode. ET024HV10-T supports a resolution of 240×320 with a standard 3:4 aspect ratio, delivering compact and stable image performance, and utilizes a TTL interface for signal transmission. It features an active area of 36.72(W)×48.96(H) mm and an outline dimension of 42.72(W)×60.26(H) mm. The display provides a typical brightness of 450 cd/m², suitable for automotive applications and general ambient environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET024HV10-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.

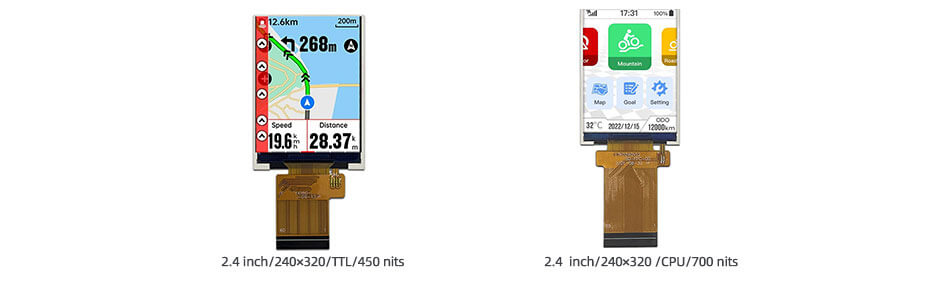

More 2.4 Inch Automotive Display For Reference
ET024HV10-T (240×320, TTL, IPS, 450nits, -20~70°C, 42.72×60.26mm)
ET024HV11-T (240×320, CPU, IPS, 700nits, -20~70°C, 42.72×59.46mm)
