2.4 Inch Capacitive Touch Screen FT6236U Industrial Control Industrial Vehicle Medical Handheld Multi-touch P+G Structure Capacitive Touch Screen

Part No.:ET024CTP02
Size:2.4″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:50.9x45.8mm
Active Area:50.60x45.50mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

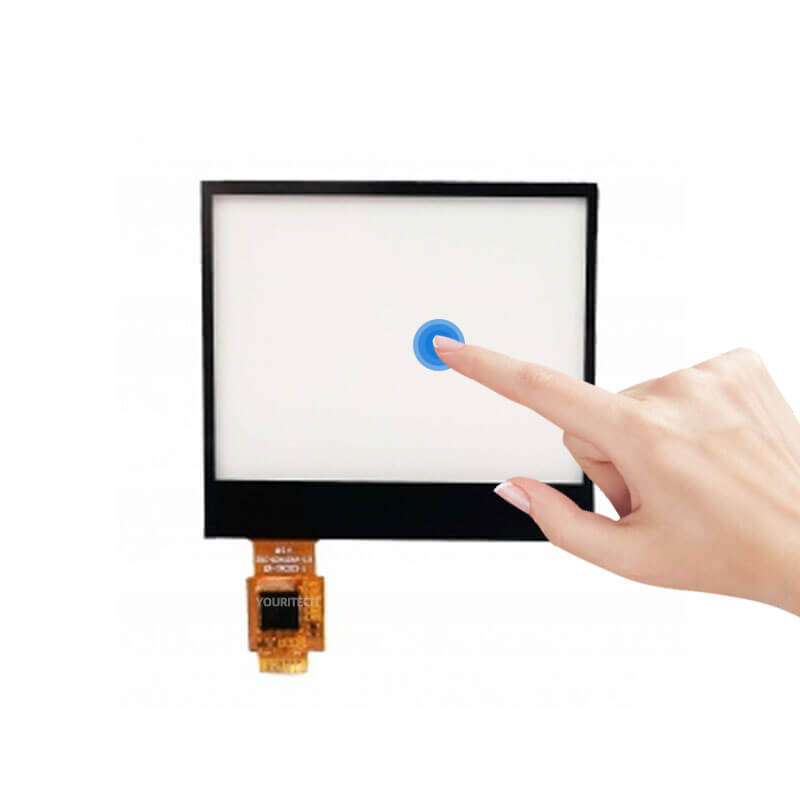

2.4 Inch Capacitive Touch Screen
Controlle IC: FT6236U
Appearance thickness:1.68 mm
Surface hardness:Hard coating (3H)
Touch Points:Multi-touch
Interface Type:I2C
Display Area:50.60x45.50 mm
Outline Dim.:50.9x45.8 mm
Operation Temperature:-10~60℃
Storage Temperature:--20 ~ 70 °C

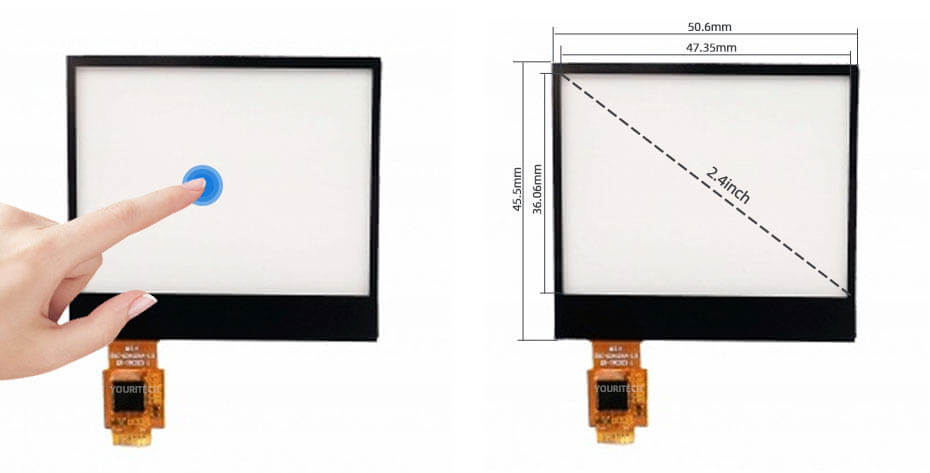

2.4 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
