2.3 Inch Wide Temperature OLED Display 256×96 SPI -40°C to 85°C PMOLED Display With 4-wire Resistive Touch

2.3 Inch Wide Temperature PMOLED Display Overview

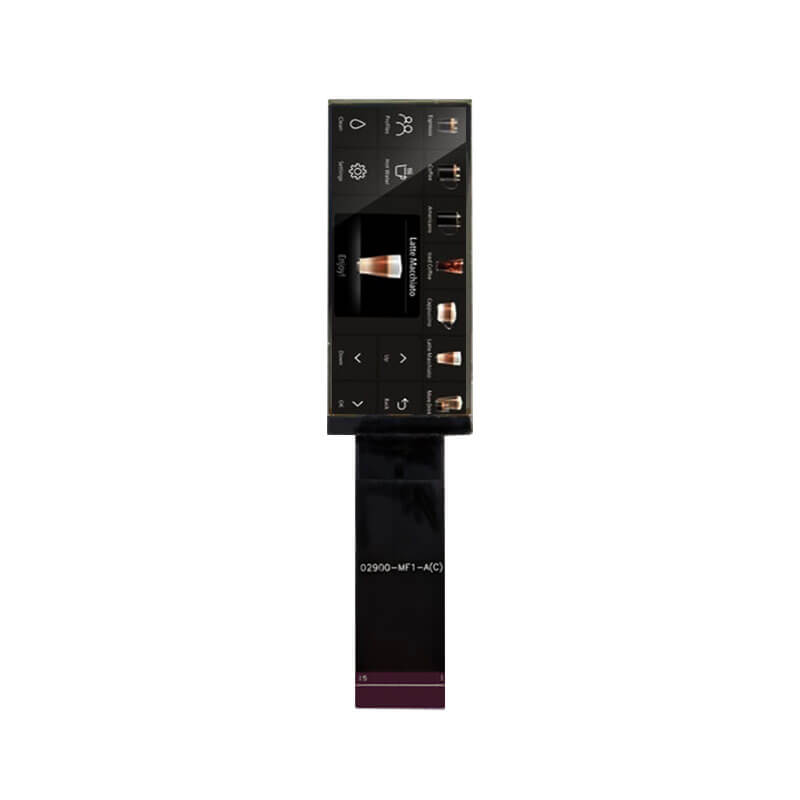

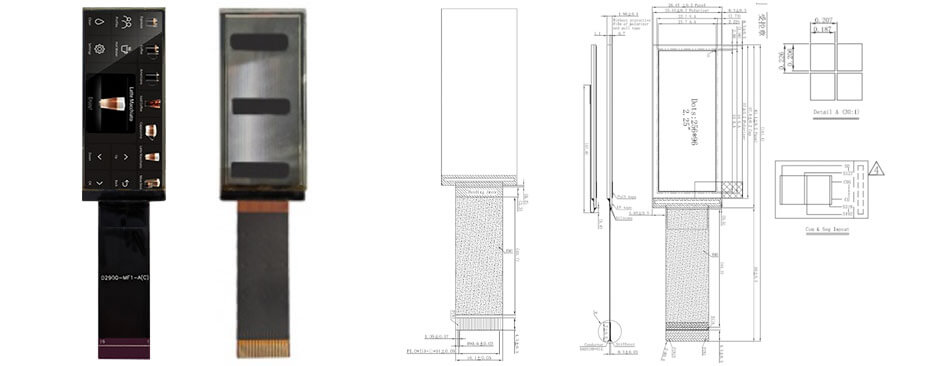

ET023WT01-JRT is a 2.3 inch diagonal PM-OLED display screen product, self-emitting. ET023WT01-JRT supports a display resolution of 256×96 with a wide aspect ratio, whose pixels are arranged in a passive matrix structure. It features an active area of 53(W) × 21.7(H) mm and an outline dimension of 111.1(W) × 26.15(H) mm. The module supports an SPI interface for communication and provides a typical display brightness of 150 cd/m². ET023WT01-JRT offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 85°C. This display module integrates a 4-wire resistive touch panel, enabling precise and reliable touch input.

More 2.3 Inch Wide Temperature Displays For Reference

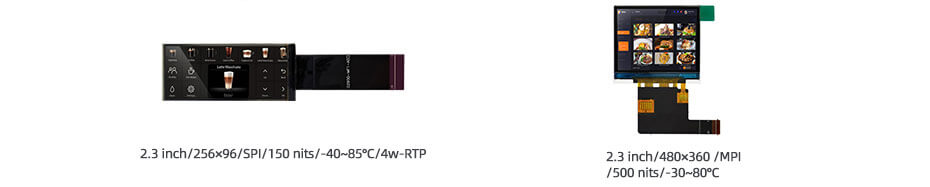

ET023WT01-JRT (PMOLED, 256×96, SPI, IPS, 150nits, -40~85°C, 111.1×26.15mm,4-wire Resistive Touch)
ET023WT01-ZW (LCD, 480×360, MIPI, IPS, 500nits, -30~80°C, 50.9×45.8mm)
