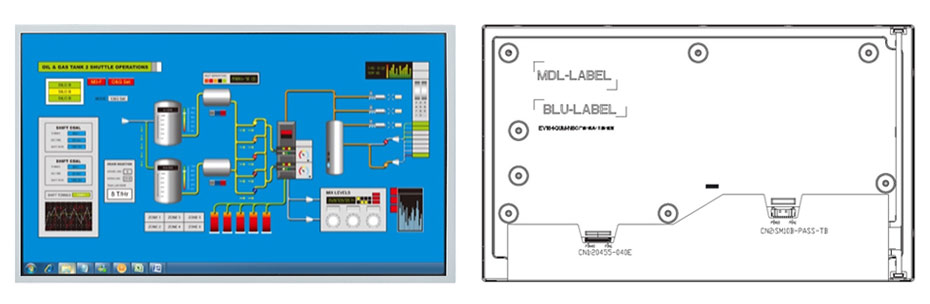

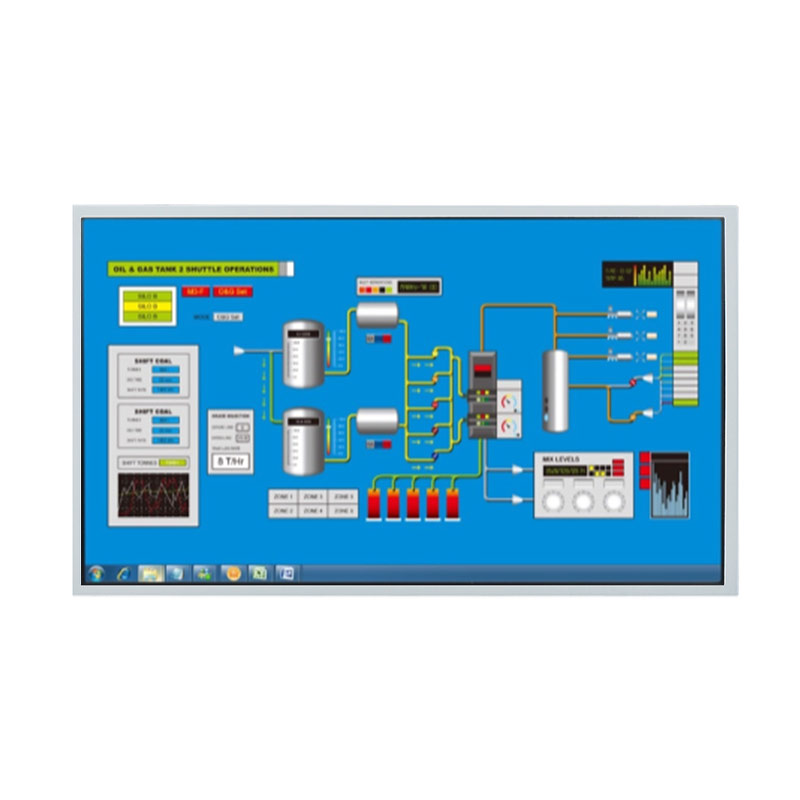

18.4 Inch 4k Display Overview
EV184QUM-N80 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 408.96(W)×230.04(H) mm, outline size of 431(W)×255.844(H)×16.5(D) mm, viewing area size of 415(W)×233.744(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 1.29±0.13Kgs. As a ADS, Normally Black, Transmissive LCM product, EV184QUM-N80 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, With LED Driver. EV184QUM-N80 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
