18.5 Inch 4K 3840x2160 LCD Display 500nits High Brightness LVDS IPS LCD Module

Part No.:ET185UH01-R
Size:18.5″ inch
Resolution:3840x2160
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:422.2x244.1mm
Active Area:409.8x230.4mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

18.5 Inch 4k Display Overview

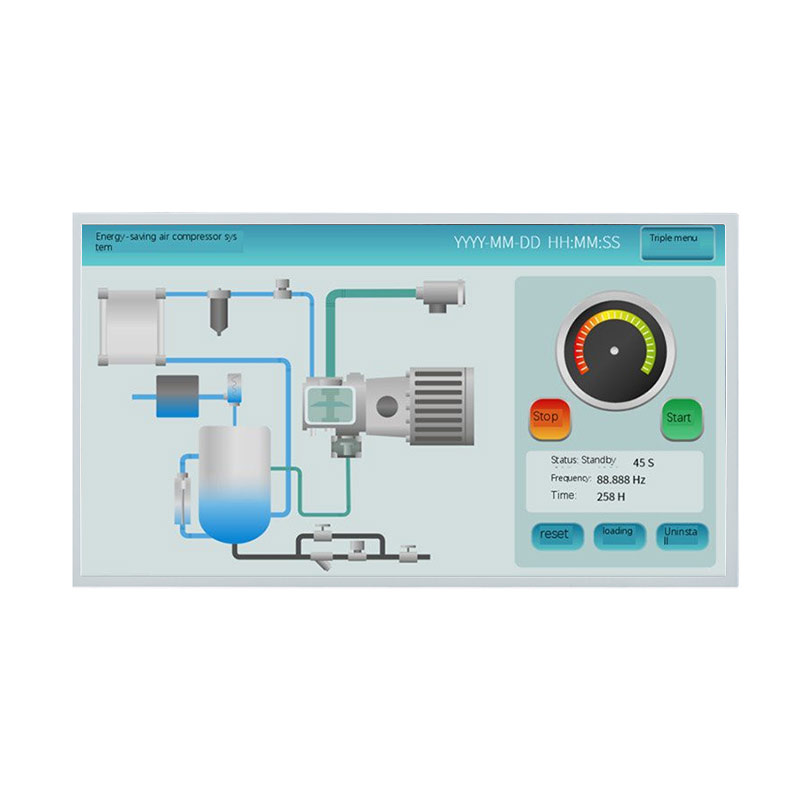

ET185UH01-R is an 18.5-inch diagonal LCD display module featuring a 3840 × 2160 (4K) resolution with a 16:9 aspect ratio. It adopts IPS technology with wide 89° viewing angles in all directions and a LVDS interface. The display offers a typical brightness of 500 cd/m² in transmissive mode. It has an active area of 409.8 × 230.4 mm and an outline dimension of 422.2 × 244.1 mm, supporting an operating temperature range of 0 to 50 °C and storage from –20 to 60 °C, suitable for high-resolution industrial and commercial applications.

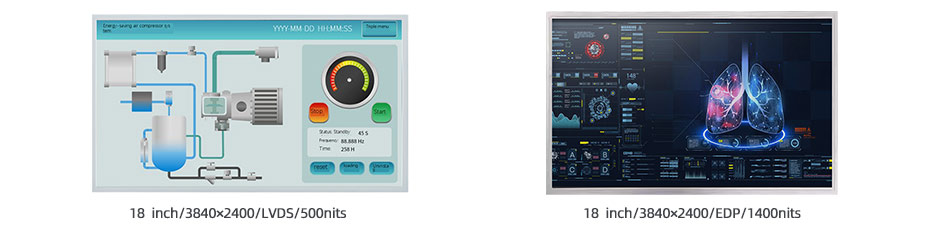

More 18.5 Inch 4k Display For Reference
ET185UH01-R (LCM, 3840x2160, LVDS, 500nits, 0~50°C, 422.2x244.1mm)
P1850UHF1MA00 (LCM, 3840x2160, eDP, 1400nits, -20~70°C, 430.96x252.04mm)
