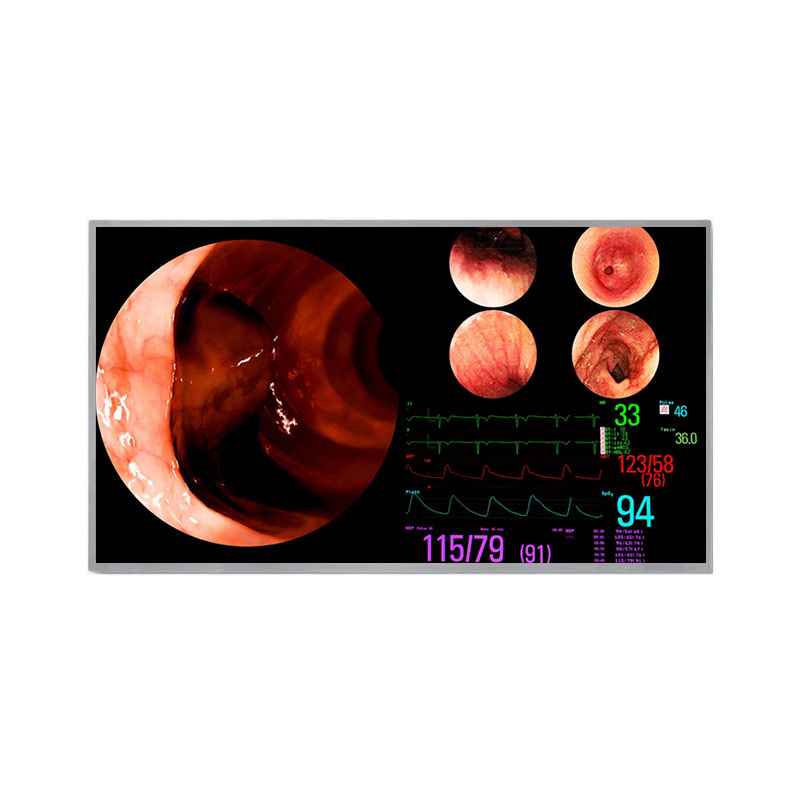

16 Inch 4K 3840x2400 OLED Display eDP (4 Lanes) IPS AMOLED Display

16 Inch 4k Display Overview
ATNA60YV08 supports display 3840(RGB)×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 283 PPI. It features active area of 344.448(W)×215.28(H) mm, outline size of 348.45(W)×224.61(H)×3.24(D) mm, with surface treament of Glare (Haze 0%), net weight of 220g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). ATNA60YV08 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA60YV08 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 60Hz.

More 16 Inch 4k Display For Reference
ATNA60YV08 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 348.45x224.61mm)
NE160QAM-NX1 (LCM, 3840x2400, eDP, 500nits, 0~50°C, 349.68x224.42mm)
NE160QAM-N61 (LCM, 3840x2400, eDP, 800nits, 0~50°C, 349.68x226.42mm)
NE160QAM-NM1 (LCM, 3840x2400, eDP, 600nits, 0~50°C, 349.68x224.42mm)
