2.8 Inch High Brightness LCD Display Overview

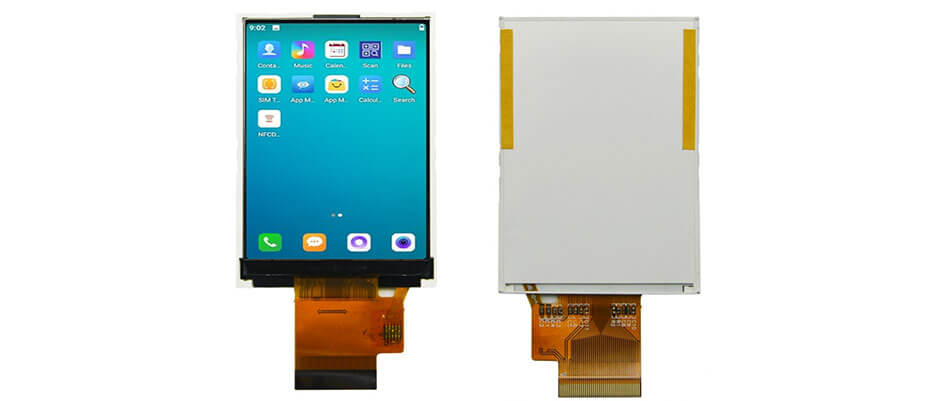

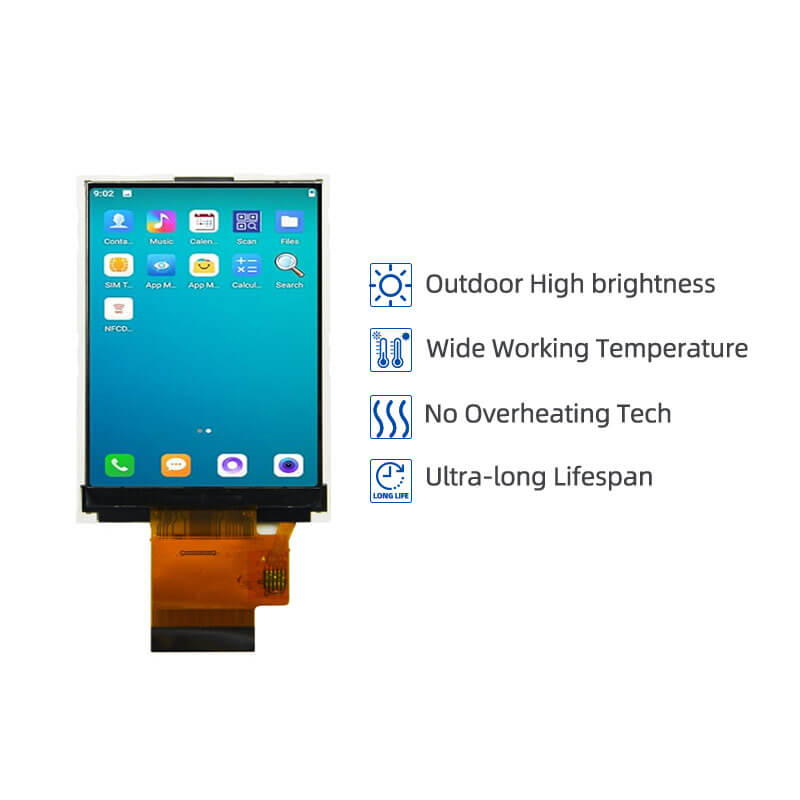

ET028VG02-C is a 2.8 inch diagonal TFT LCD display product featuring a transmissive display mode. ET028VG02-C supports 240×320 resolution with a standard aspect ratio, utilizing a TTL interface for stable signal transmission. It features an active area of 43.2(W) × 57.6(H) mm and an outline dimension of 50.5(W) × 69.7(H) mm. The display delivers 1000 cd/m² (Typ.) high brightness for excellent readability under strong ambient light conditions. With a wide viewing angle of 80/80/80/80 (L/R/U/D), it provides clear and consistent image performance from multiple directions. Designed for handheld PDA applications, ET028VG02-C supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. This module does not include a touch panel.
More 2.8 Inch High Brightness LCD Display For Reference
ET028VG01-C (240x320, CPU/RGB/SPI ,850nits, -20~70°C, 50.2x69.2mm)
ET028VG20-K (240x320, MIPI ,700nits, -20~70°C, 50.5x69.7mm)
ET028VG02-C (240x320, TTL ,1000nits, -20~70°C, 50.5x69.7mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
