16 Inch 4K 3840x2400 LCD Display 500nits High Brightness eDP (4 Lanes) IPS LCD Module

16 Inch 4k Display Overview

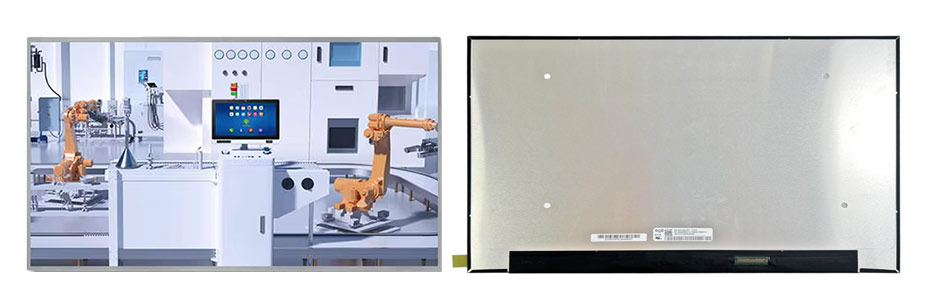

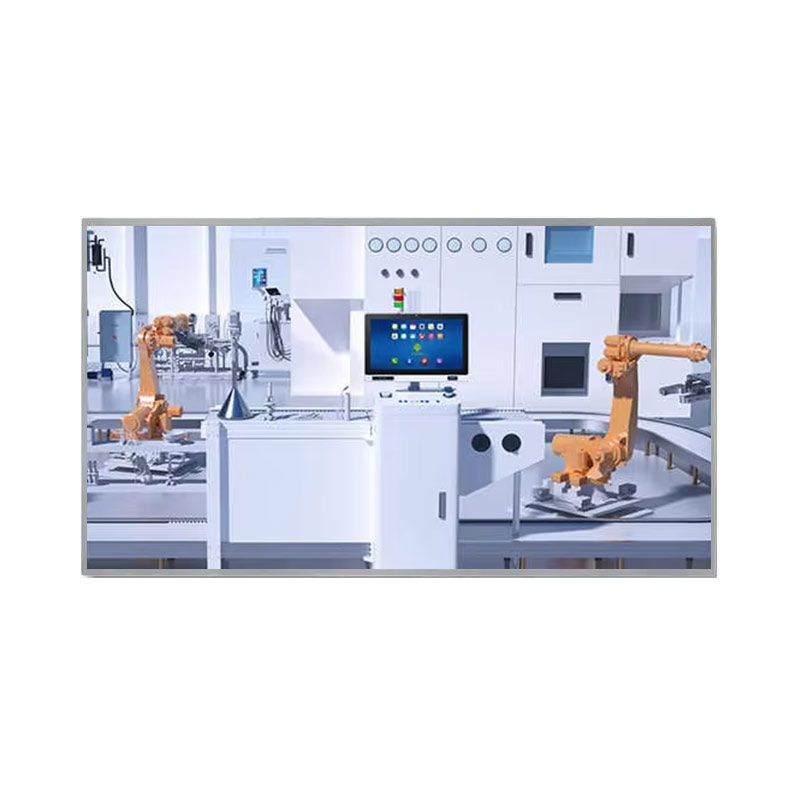

NE160QAM-NX1 supports display 3840(RGB)×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 282 PPI. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QAM-NX1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product adopted 11S8P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE160QAM-NX1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.

More 16 Inch 4k Display For Reference
ATNA60YV08 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 348.45x224.61mm)
NE160QAM-NX1 (LCM, 3840x2400, eDP, 500nits, 0~50°C, 349.68x224.42mm)
NE160QAM-N61 (LCM, 3840x2400, eDP, 800nits, 0~50°C, 349.68x226.42mm)
NE160QAM-NM1 (LCM, 3840x2400, eDP, 600nits, 0~50°C, 349.68x224.42mm)
