16 Inch 4K 3840x2400 LCD Display 600nits High Brightness eDP (4 Lanes) IPS LCD Module

16 Inch 4k Display Overview

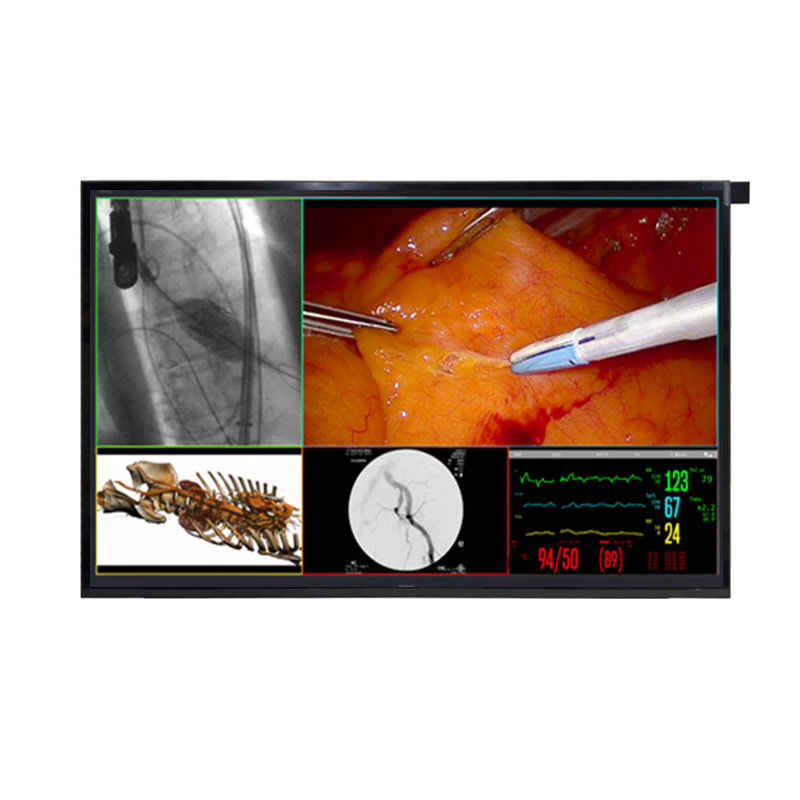

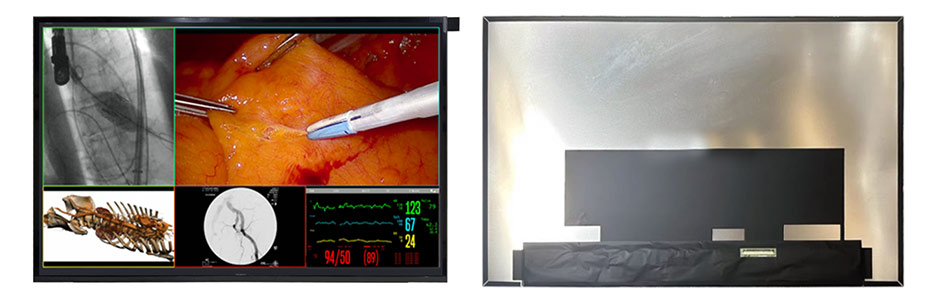

NE160QAM-NM1 is a 16.0 inch diagonal Oxide TFT-LCD display screen product, with an incorporated Mini LED lighting system, With LED Driver, without touch screen. NE160QAM-NM1 supports display 3840(RGB)×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 282 PPI. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 440g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QAM-NM1 can provides 600 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 7 (Typ.)(G2G), 3 (Typ.)(G2G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted Mini LED as it's backlight systerm which was placed as Direct light type and have a working life time of 15K hours, With LED Driver. NE160QAM-NM1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.

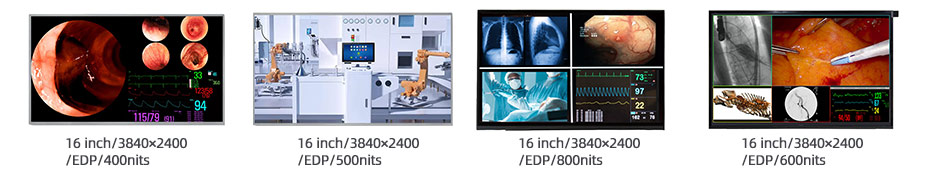

More 16 Inch 4k Display For Reference
ATNA60YV08 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 348.45x224.61mm)
NE160QAM-NX1 (LCM, 3840x2400, eDP, 500nits, 0~50°C, 349.68x224.42mm)
NE160QAM-N61 (LCM, 3840x2400, eDP, 800nits, 0~50°C, 349.68x226.42mm)
NE160QAM-NM1 (LCM, 3840x2400, eDP, 600nits, 0~50°C, 349.68x224.42mm)
