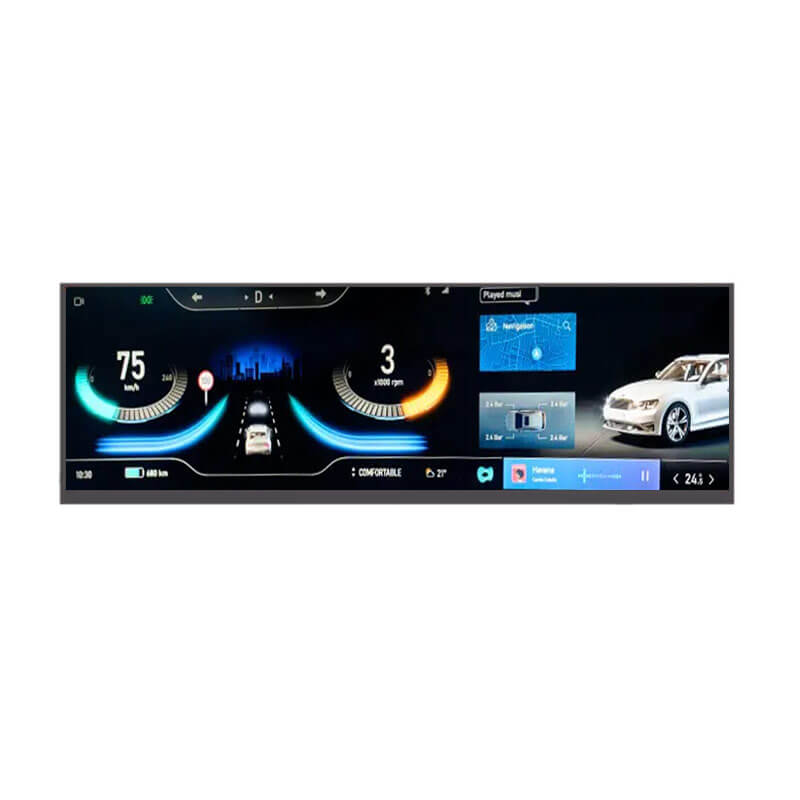

16.2 Inch TFT LCD Display 2608×720 LVDS High Brightness 800nits Wide Temperature LCD Display For Automotive

16.2 Inch Automotive Display Overview
AV162YUM-N10 is a 16.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. AV162YUM-N10 supports display 2608(RGB)×720 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 396.677(W)×109.512(H) mm, outline size of 413(W)×131.5(H)×23.15(D) mm, viewing area size of 400.5(W)×113.3(H) mm. As a ADS, Normally Black, Transmissive LCM product, AV162YUM-N10 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 89% (DCI-P3). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AV162YUM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/5.0/18/-12V (Typ.)(VDD3/VDD5/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

Automotive Display Solution
