15.7 Inch TFT LCD Display 2880×1620 LVDS High Brightness 600nits Wide Temperature LCD Display With In-Cell Touch For Automotive

15.7 Inch Automotive Display Overview

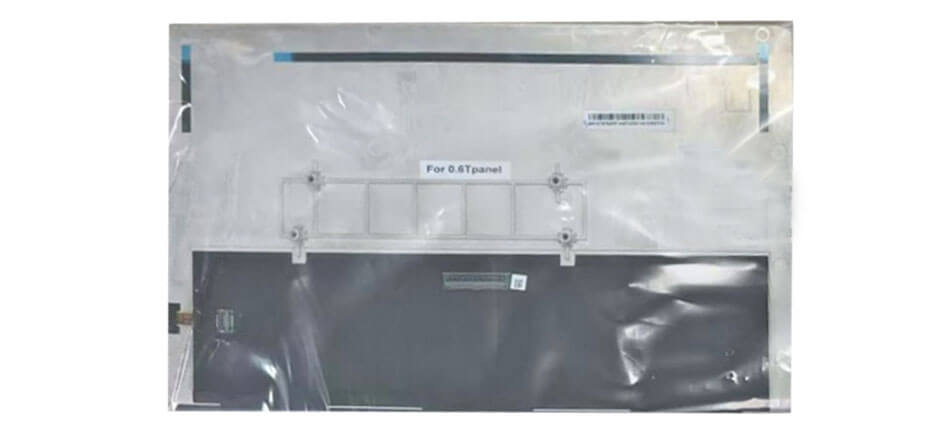

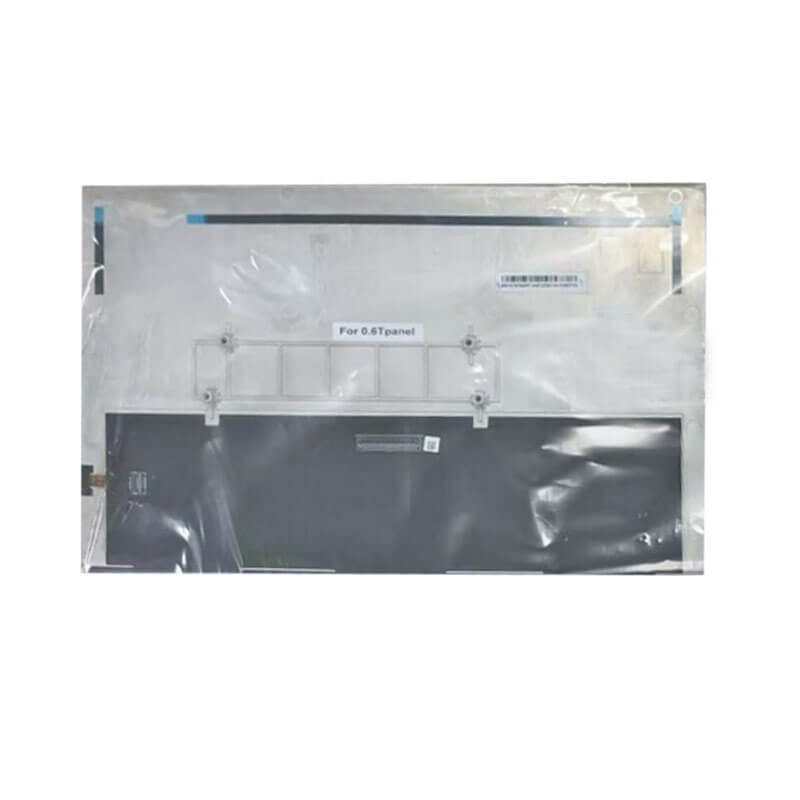

AS157HLT-LX0 is a 15.7 inch diagonal LTPS TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, touchscreen In-Cell Touch.AS157HLT-LX0 supports display 2880(RGB)×1620 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 346.46(W)×194.886(H) mm, outline size of 724.128(W)×216.86(H)×16.79(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (7H), Antireflection, net weight of 2.50±0.25Kgs. As a ADS, Normally Black, Transmissive Dual product, AS157HLT-LX0 can provides 600 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 88% (DCI-P3). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AS157HLT-LX0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
