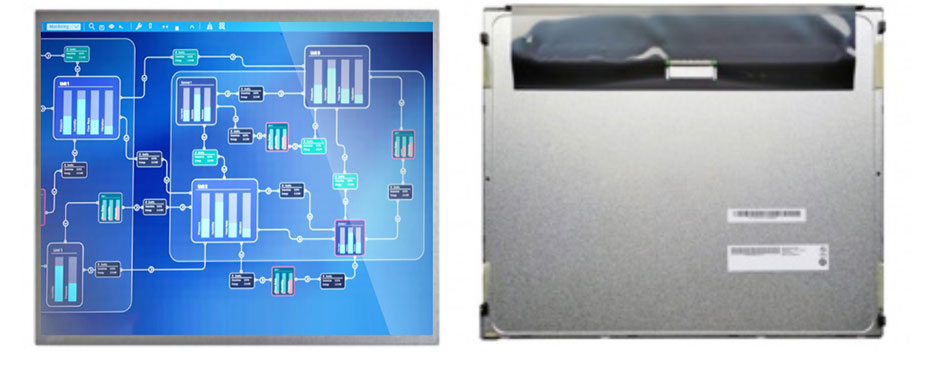

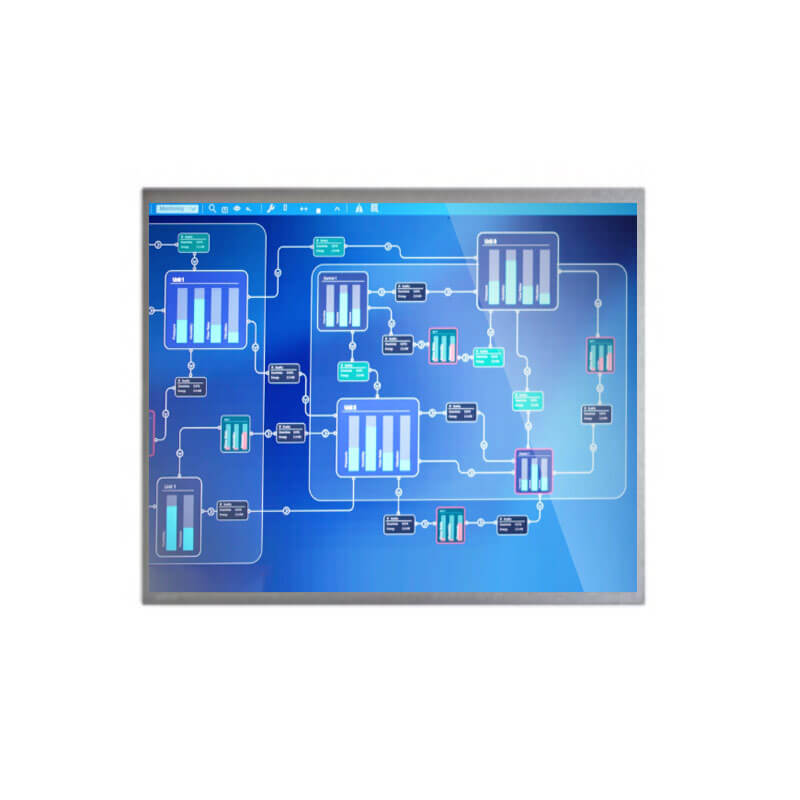

17 Inch TFT LCD Display 1280×1024 LVDS High Brightness 1500nits Wide Temperature LCD Display For Automotive OverviewET170SX01-RS is a 17-inch diagonal TFT-LCD display product with a transmissive display mode. ET170SX01-RS supports a resolution of 1280×1024 with a standard aspect ratio, delivering clear and stable image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 337.92(W)×270.336(H) mm and an outline size of 358.5(W)×296.5(H) mm. The display provides a high brightness of 1500 cd/m², suitable for high ambient light and automotive environments, and offers viewing angles of 80/80/70/70 (L/R/U/D). Designed for wide-temperature applications, it operates within a temperature range of -30 to 85°C and can be stored at -30 to 85°C. This model does not include a touch function.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
