15 Inch TFT LCD Display 720×1920 LVDS High Brightness 950nits Wide Temperature LCD Display For Automotive

15 Inch Automotive Display Overview

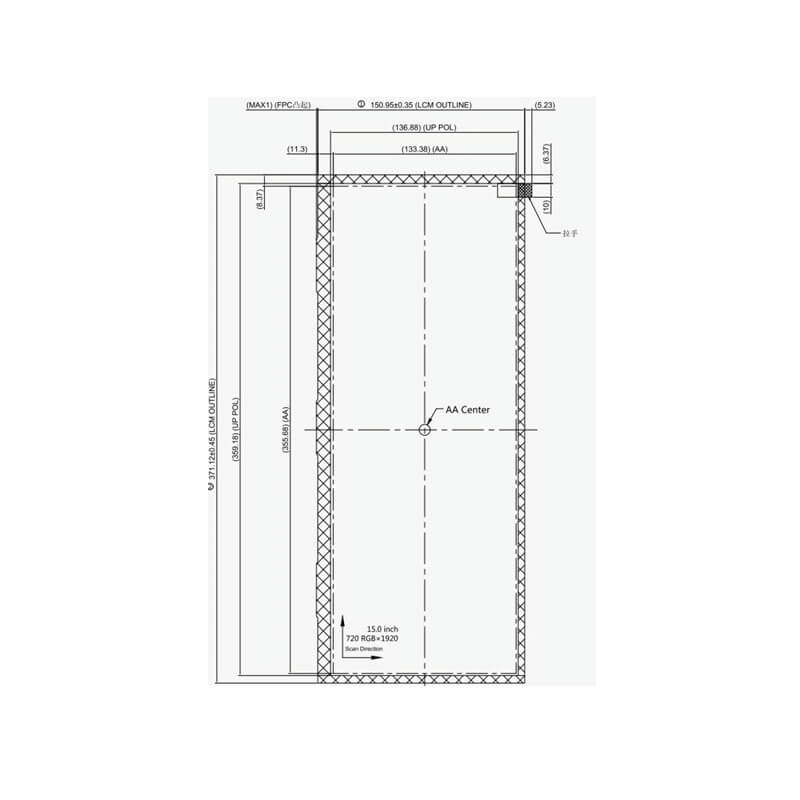

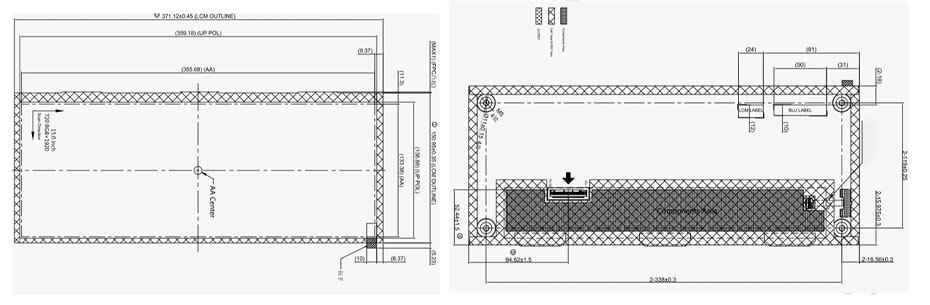

COG-VLSZT173-01 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. COG-VLSZT173-01 supports display 720(RGB)×1920 with aspect ratio of 3:8 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 133.38(W)×355.68(H) mm, outline size of 150.95(W)×371.12(H)×15.7(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, COG-VLSZT173-01 can provides 950 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COG-VLSZT173-01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 15 Inch Automotive Display For Reference
G150XNE-L01 (1024×768, LVDS, VA, 500nits, -30~80°C, 326.5×253.5mm)
ET150WX01-RX (1024×768, LVDS, TN, 1000nits, -20~70°C, 37.4×231.3mm)
TX38D203VM0BAA (1920×720, LVDS, IPS, 1000nits, -40~85°C, 374.5×154.5mm)
COG-VLSZT173-01 (720×1920, LVDS, IPS, 950nits, -30~85°C, 150.95×371.12mm)
